Xerox Phaser 6300 - No Paper Sensor (PL12.5.7)

8-128 Phaser 6300/6350 Color Laser Printer Service Manual

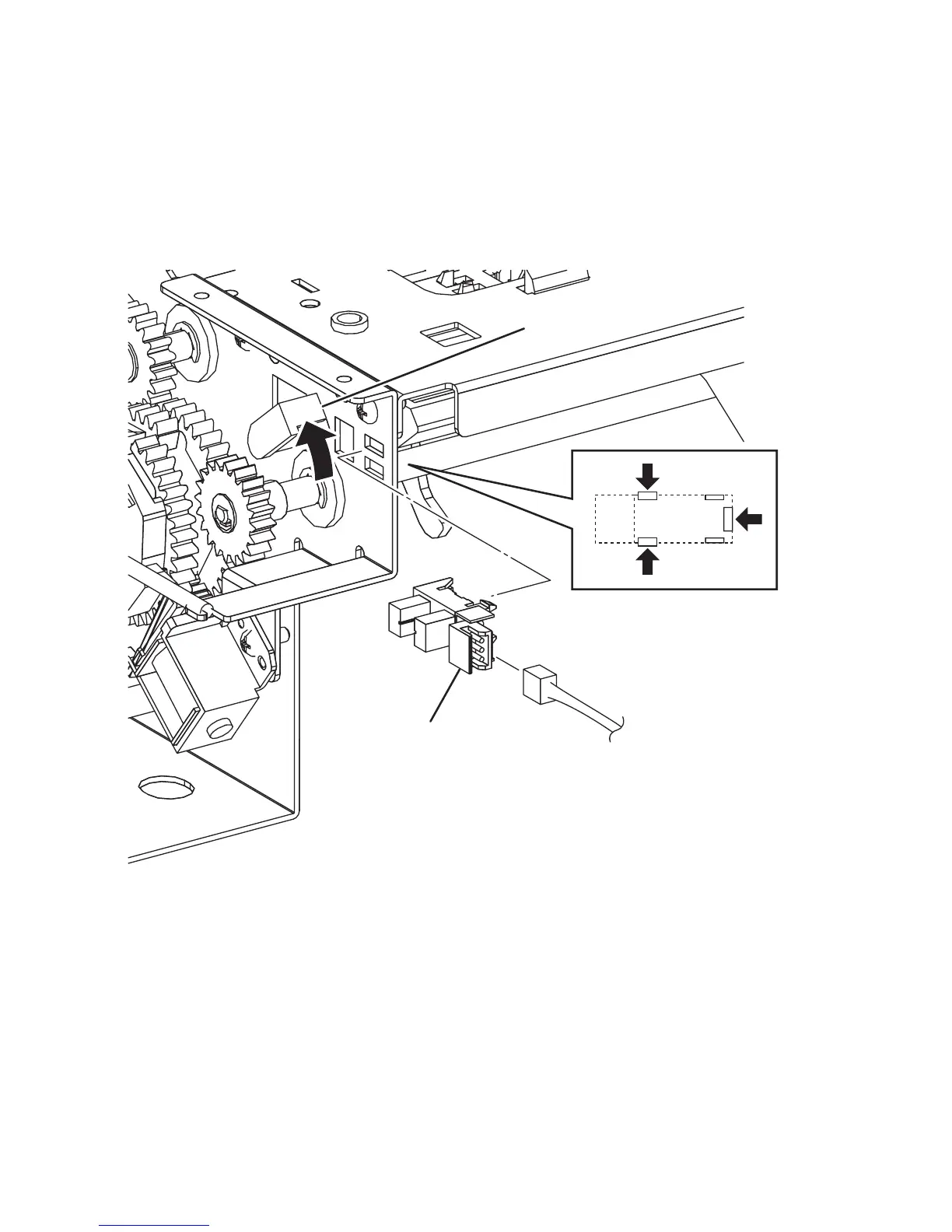

No Paper Sensor (PL12.5.7)
1. Remove the Front Covers (page 8-111).
2. Remove the Right Cover (page 8-113).
3. Disconnect the No Paper Sensor connector (P/J822).
4. Lift the actuator and use a small screwdriver to release the 3 hooks and remove
the No Paper Sensor.
s6300-237
P/J822
No Paper Sensor
No Paper Actuator
