Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-45
Tray 1 (MPT) No Paper Sensor and Actuator (PL5.3.14)
1. Remove the Top Main Cover (page 8-8).
2. Remove the Left Side Cover (page 8-13).
3. Open Door B.

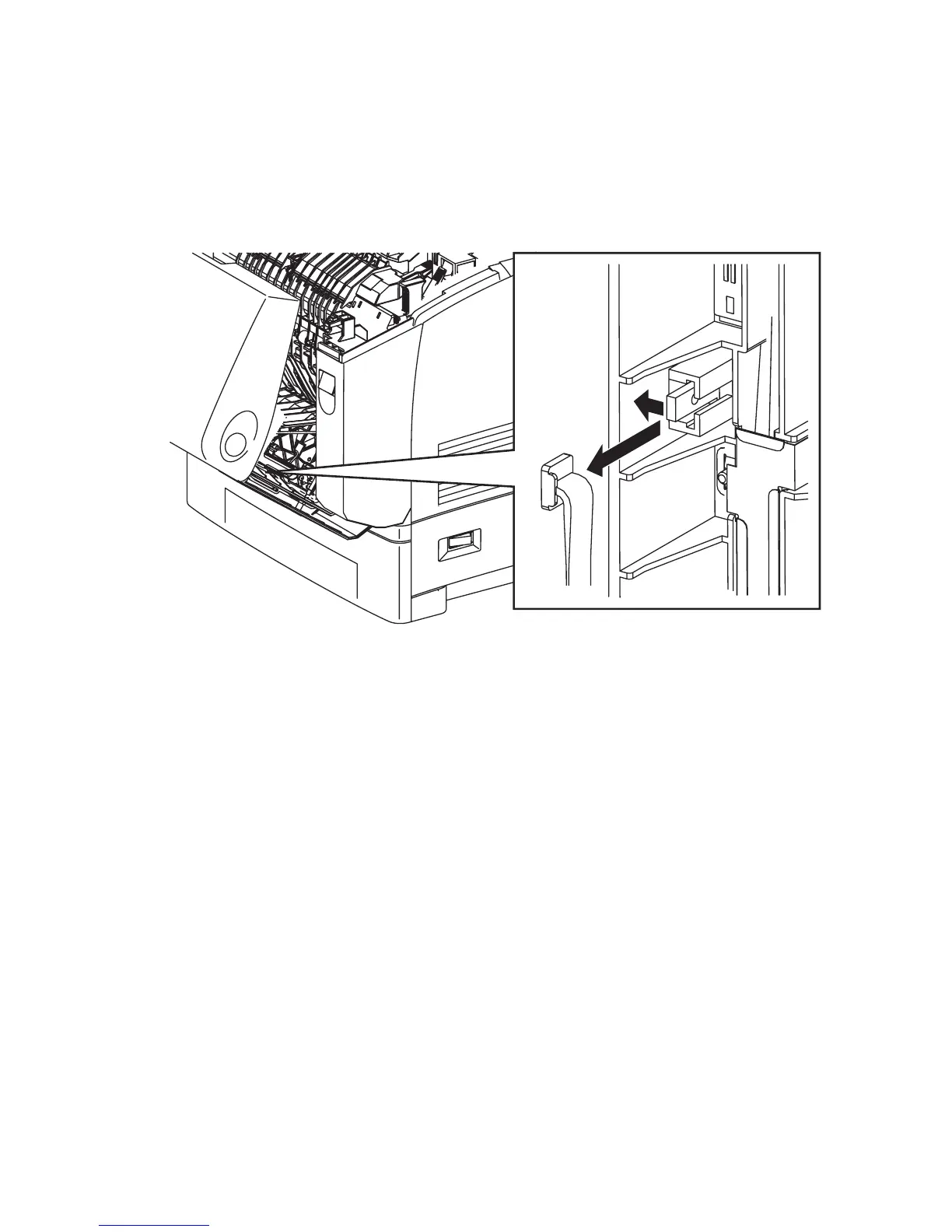

4. Release the hook to remove the Stopper Strap from Door B.
5. Close Door B.
Caution
Hold the Door B after releasing the Link and spring to prevent it from falling
open. Gently lower Door B to the supporting surface.
s6300-175
