8-44 Phaser 6300/6350 Color Laser Printer Service Manual
12. Remove the Gear MPT and attached spring from the shaft. Leave the spring
attached to the printer.
13. Remove the screw that secures the Tray 1 (MPT) Feed Solenoid and the ground
wire to the Chute Assembly Out.
14. Remove the Tray 1 (MPT) Feed Solenoid.
Replacement Note
After servicing the Feed Solenoid, replace the cable tie and verify routing of
the harness bundle. Make certain that repeated door operation does not
abrade the harness bundle.

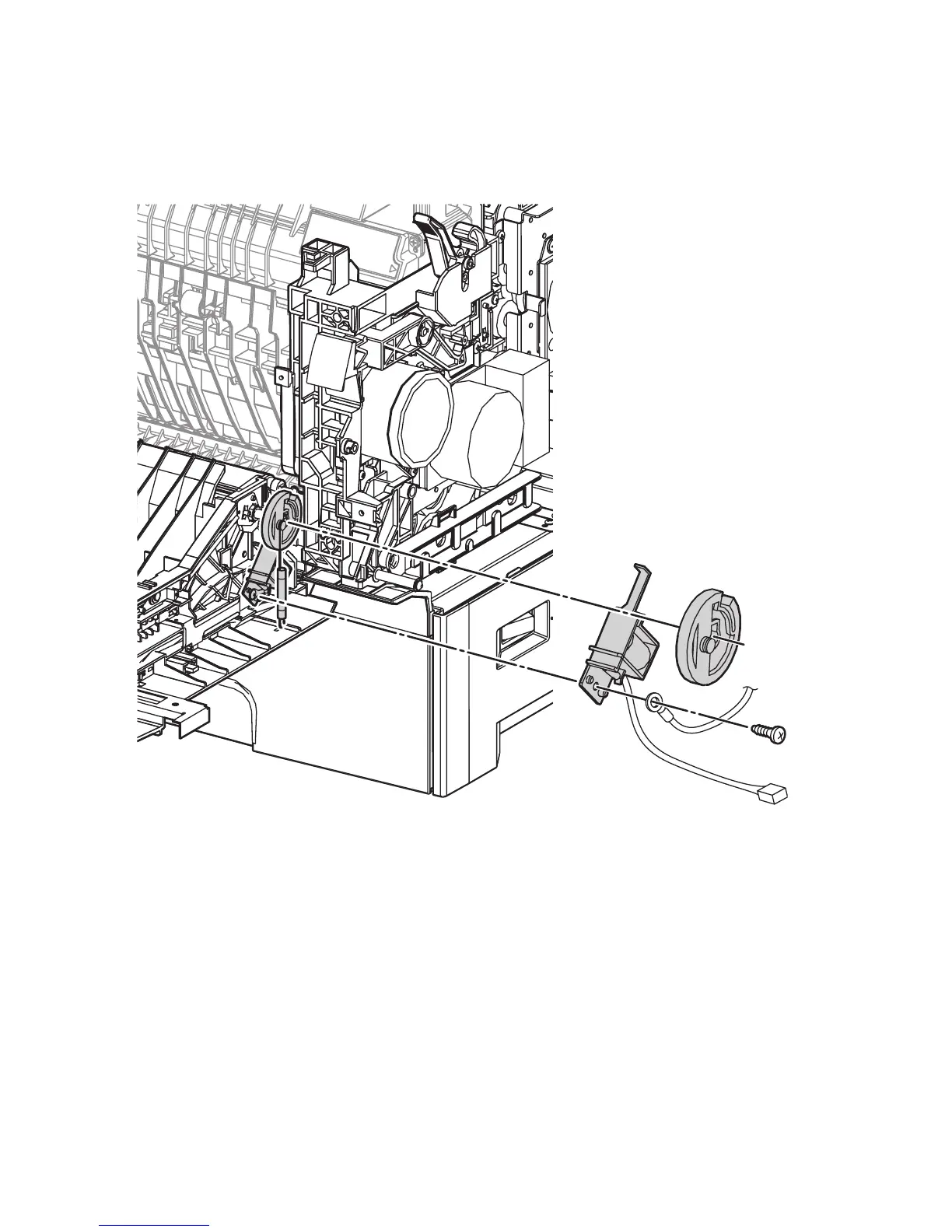

s6300-172
