Xerox Phaser 6300 - Optional 550-Sheet Feeder Disassembly; Docking (PL11.1.1)

8-134 Phaser 6300/6350 Color Laser Printer Service Manual
Optional 550-Sheet Feeder Disassembly
Docking (PL11.1.1)
Caution
Lifting the printer requires two people. Use care when removing the printer from
the Feeder.

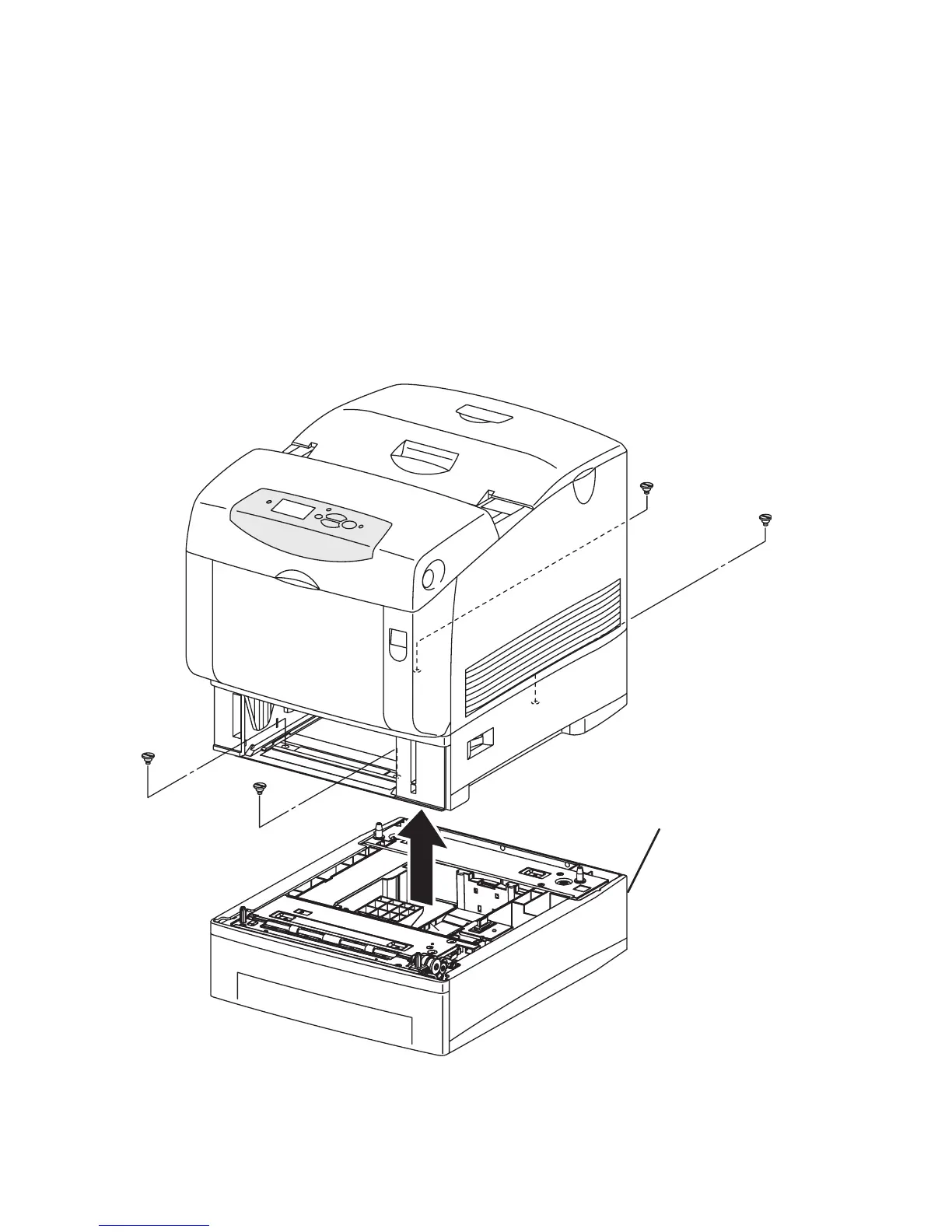

1. Remove Tray 2.
2. Remove four screws that secure the Tray 3 Feeder to the printer.
3. Lift the printer from the Tray 3 Feeder.
s6300-225
Tray 3 Feeder Assembly
