8-28 Phaser 6300/6350 Color Laser Printer Service Manual
No Paper Sensor (PL3.3.7)
1. Remove the Printer Chassis (page 8-23).
2. Remove the Paper Pick Assembly (page 8-27).
3. Unplug connector (P/J472) from the No Paper Sensor.
4. Release the 3 hooks on the sensor to release it from the Paper Pick Assembly.

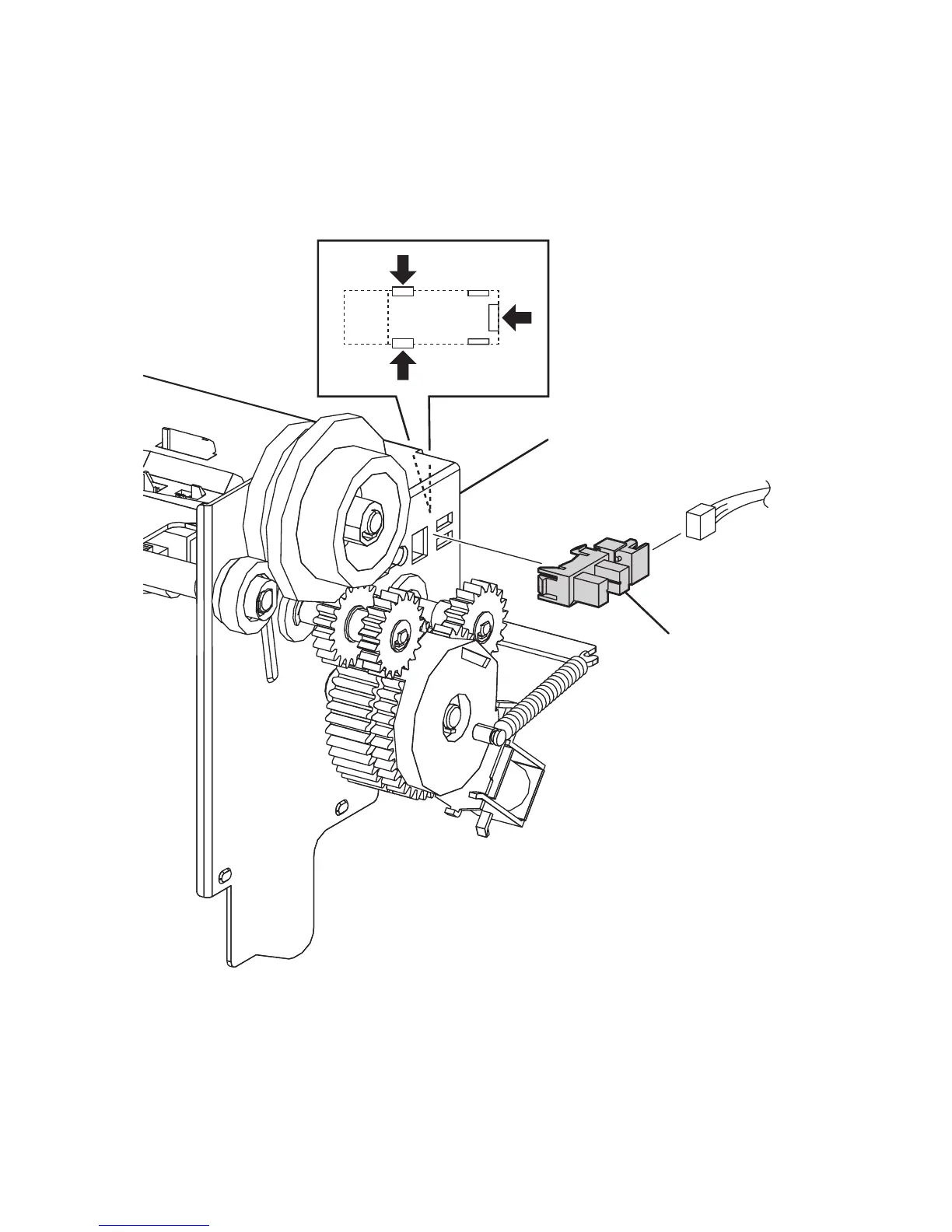

s6300-147
Paper Pick Assembly
P/J472
No Paper
Sensor
