Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-149
No Paper Sensor Actuator (PL11.3.22)
1. Remove the 550-Sheet Feeder (page 8-134).
2. Remove the Right Cover (page 8-135).
3. Remove the Left Cover (page 8-136).
4. Remove the Drive Assembly (page 8-146).
5. Remove Paper Pick Assembly (page 8-141).

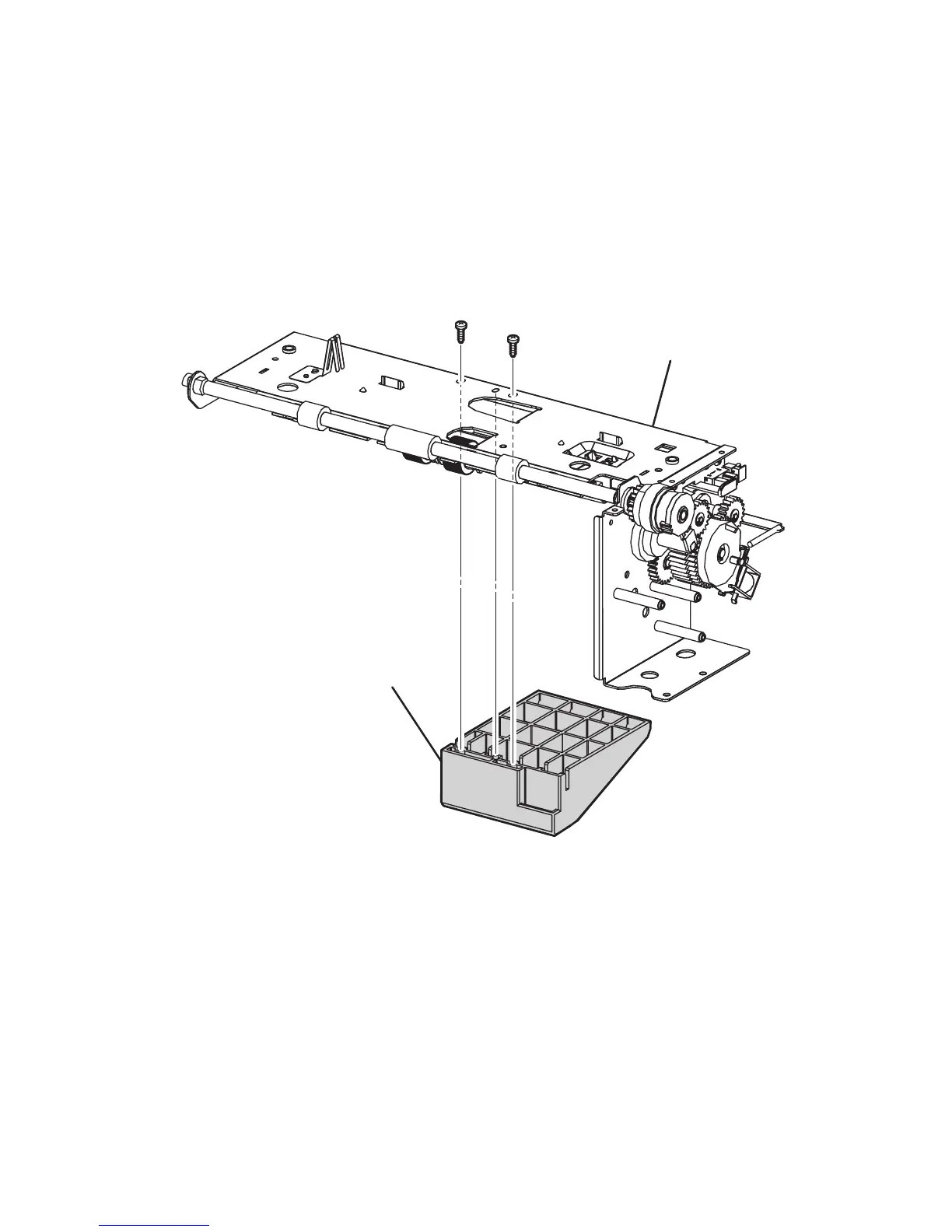

6. Remove 2 screws (self-tapping, plastic 8 mm) that secure the Paper Guide to the
Paper Pick Assembly.
s6300-245
Feeder Assembly
Paper Guide
