Xerox Phaser 6300 - No Paper Sensor Actuator (PL3.3.20)

Service Parts Disassembly 8-33
No Paper Sensor Actuator (PL3.3.20)
1. Remove the Printer Chassis (page 8-23).
2. Remove the Feeder Chute (page 8-21).
3. Remove the Paper Pick Assembly (page 8-27).
4. Turn the Paper Pick Assembly over.
5. Release the hook that secures the No Paper Sensor Actuator to the Paper Pick
Assembly.
6. Pull the actuator out slightly, and then shift the thin section of the shaft from the
hole to the slot side. (No Paper Sensor removed for simplification.)
7. Remove the No Paper Sensor Actuator shaft out of the hole in the Paper Pick
Assembly while moving the hook side of the actuator forward.

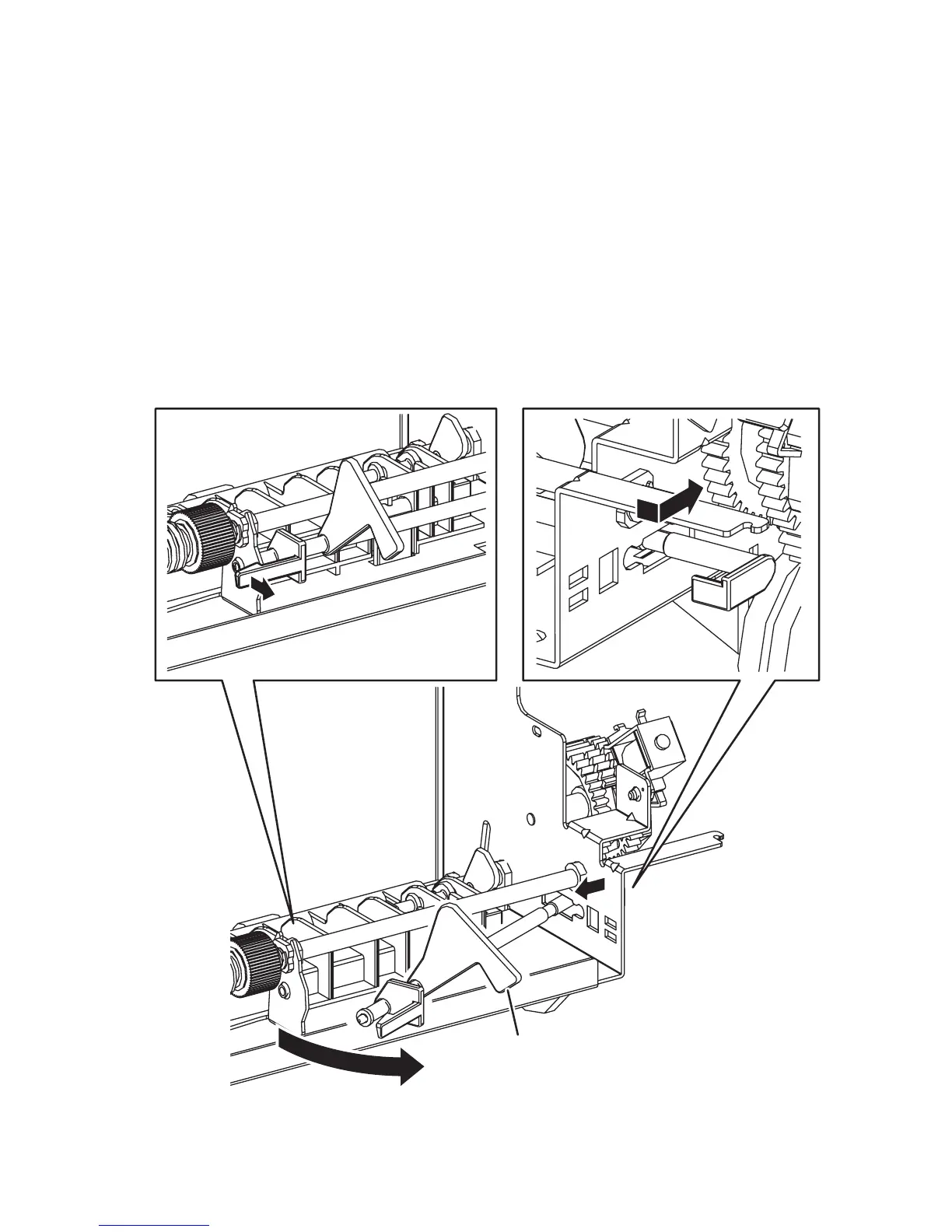

s6300-153
No Paper Actuator
