Service Parts Disassembly 8-127

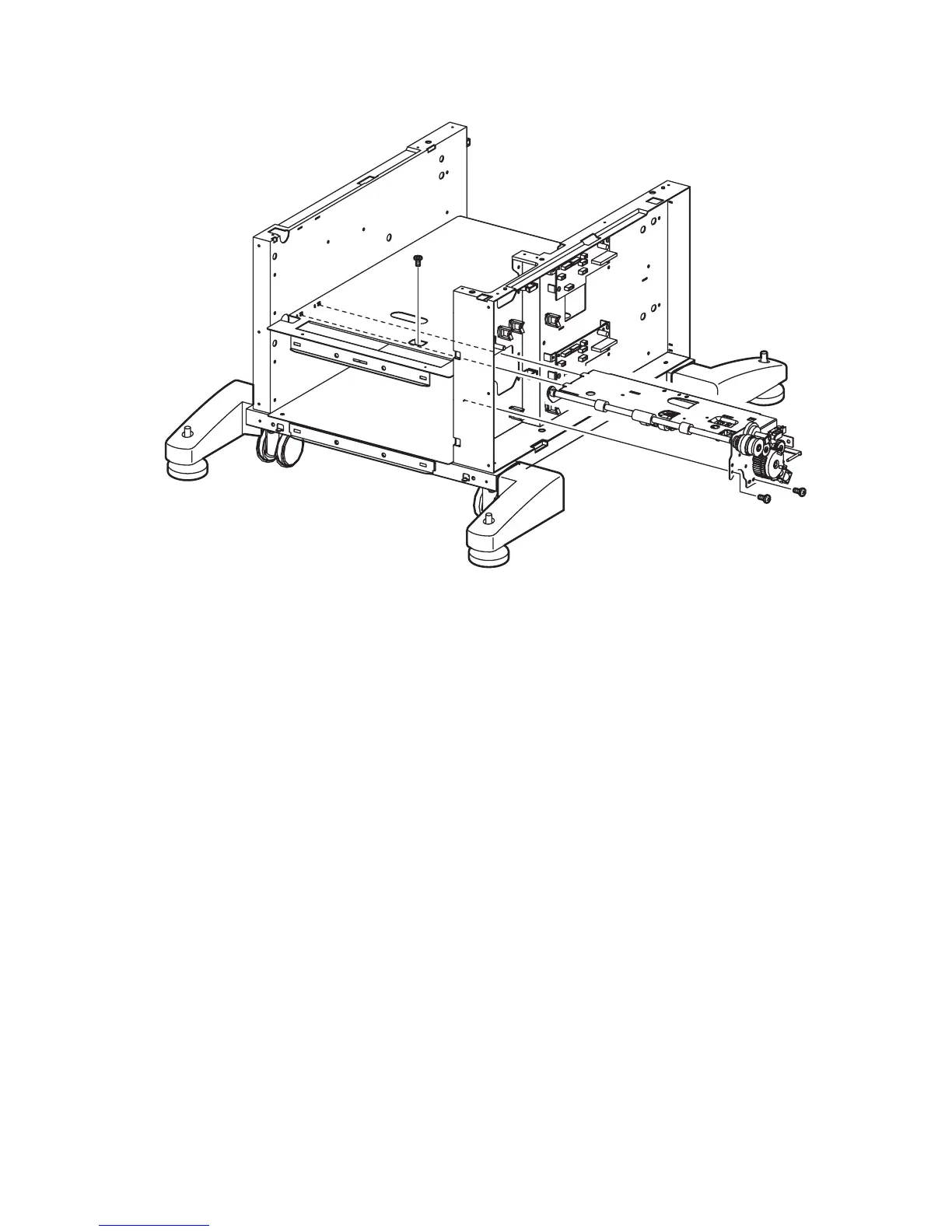

18. Remove three screws (metal, 6 mm) that secure the Paper Pick Assembly HCF
T2 to the frame, and remove the Paper Pick Assembly HCF T2 from the right.
s6300-275
