8-124 Phaser 6300/6350 Color Laser Printer Service Manual

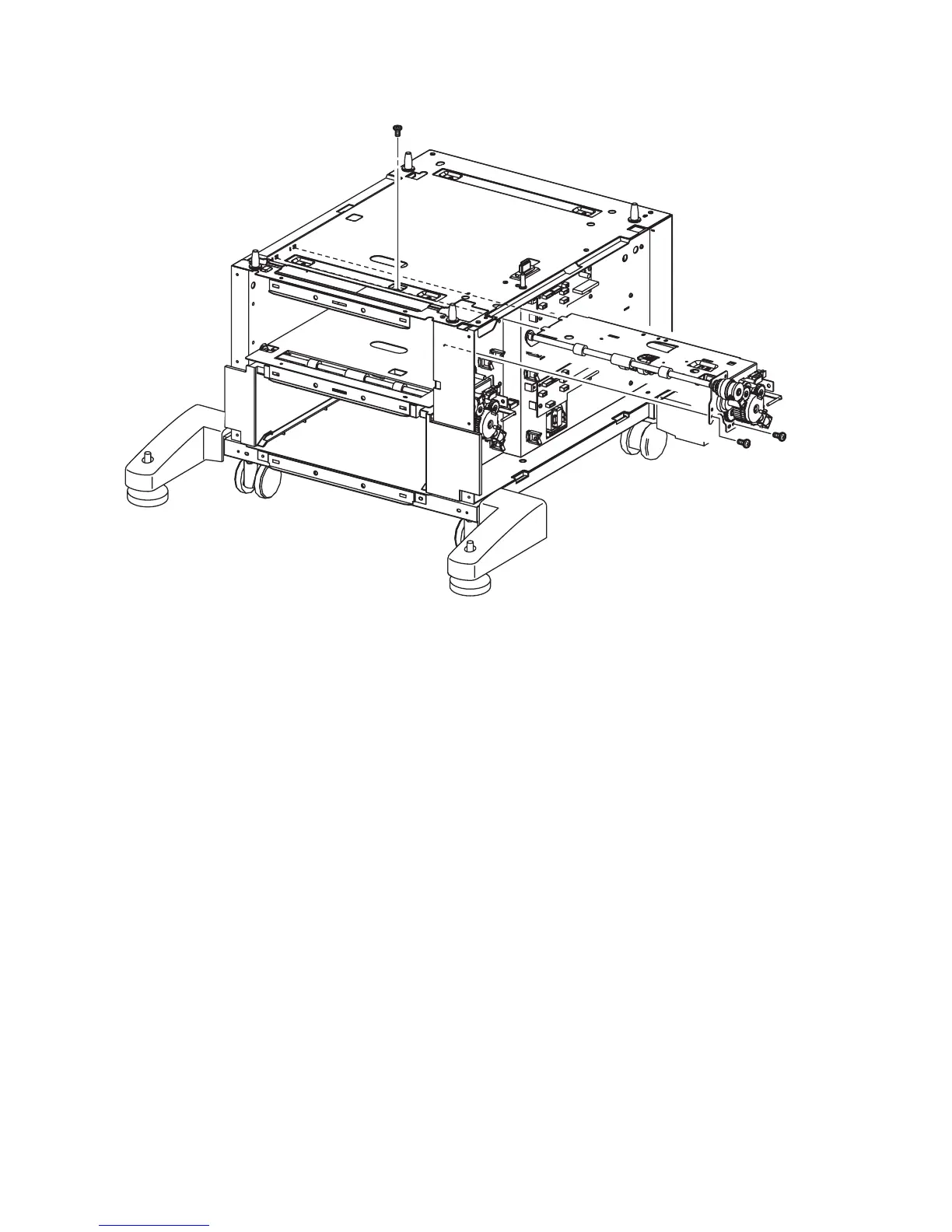

15. Remove 3 screws (metal, 6 mm) that secure the Paper Pick Assembly HCF T1 to
the frame, and remove the Paper Pick Assembly HCF T1 from the right.
s6300-263
