Service Parts Disassembly 8-123
9. Remove the upper Right Feeder Assembly (page 8-117).
10. Remove the Drive Assembly (page 8-121).

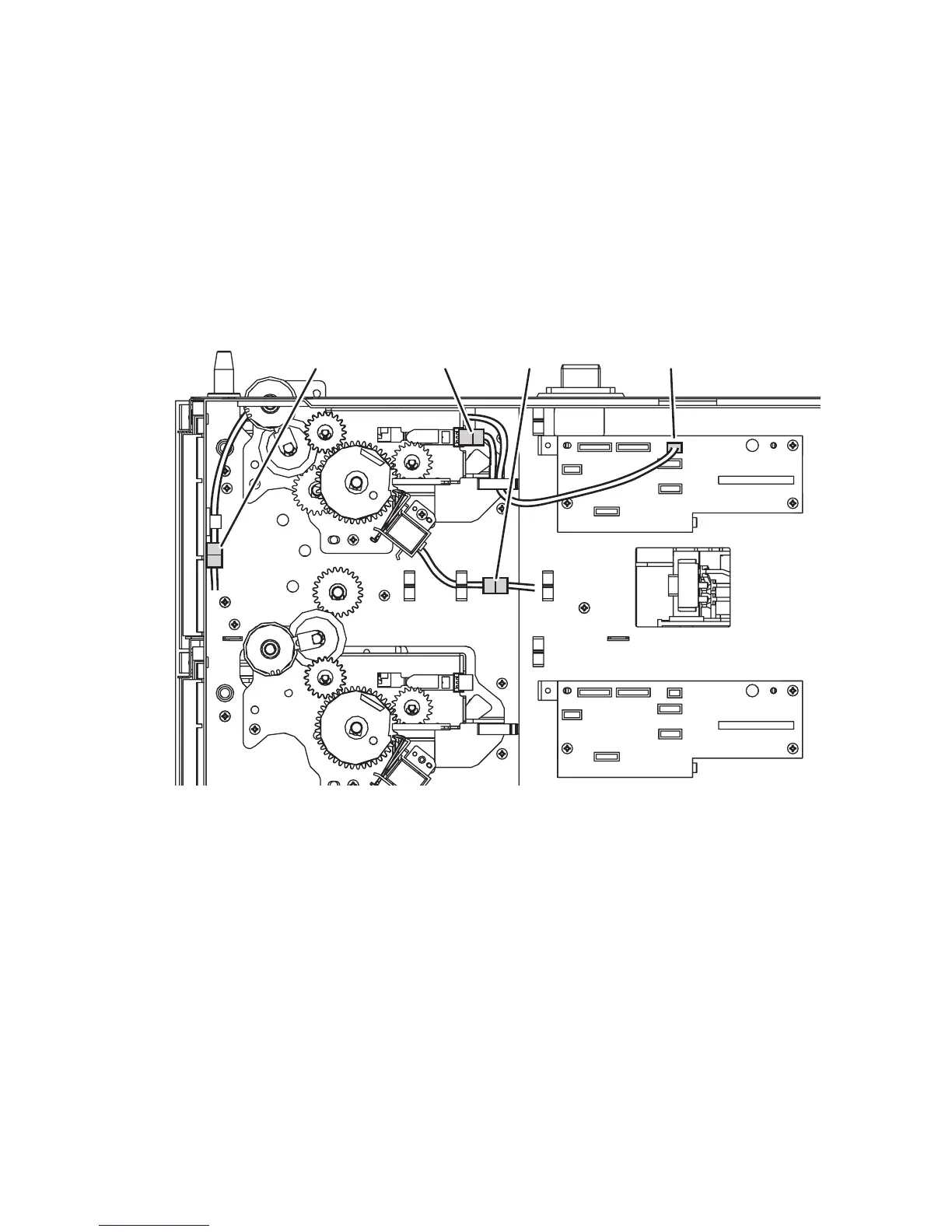

11. Disconnect the connector (P/J81) from the upper Circuit Board HCF, and remove
the harness from clamp.
12. Disconnect the No Paper Sensor connector (P/J822) on upper Paper Pick
Assembly.
13. Disconnect the Feed Solenoid connector (P/J824) and remove the harness from
the clamp.
14. Disconnect the Turn Roller Clutch connector (P/J825) and remove the harness
from the clamp.
s6300-261
P/J822P/J825 P/J81P/J824
To Next Page
