Service Parts Disassembly 8-7
For convienence, it is recommended that you remove the Top Cover, Imaging Unit,
and trays and place them where they do not interfere with the repair. (Note that
servicing can be done with these parts in place depending on the location of the
procedure being performmed.) Also, cover the exposed rollers of the Developer
Assemblies with a sheet of paper or other similar material to avoid the transfer of
Toner to clothing or other parts of the printer.
Caution
Do not expose the Imaging Unit to light for more than 10 minutes. After
removal, cover the Imaging Unit to minimize the amount of light striking the
rollers. Prolonged exposure to light significantly reduces Imaging Unit
performance.

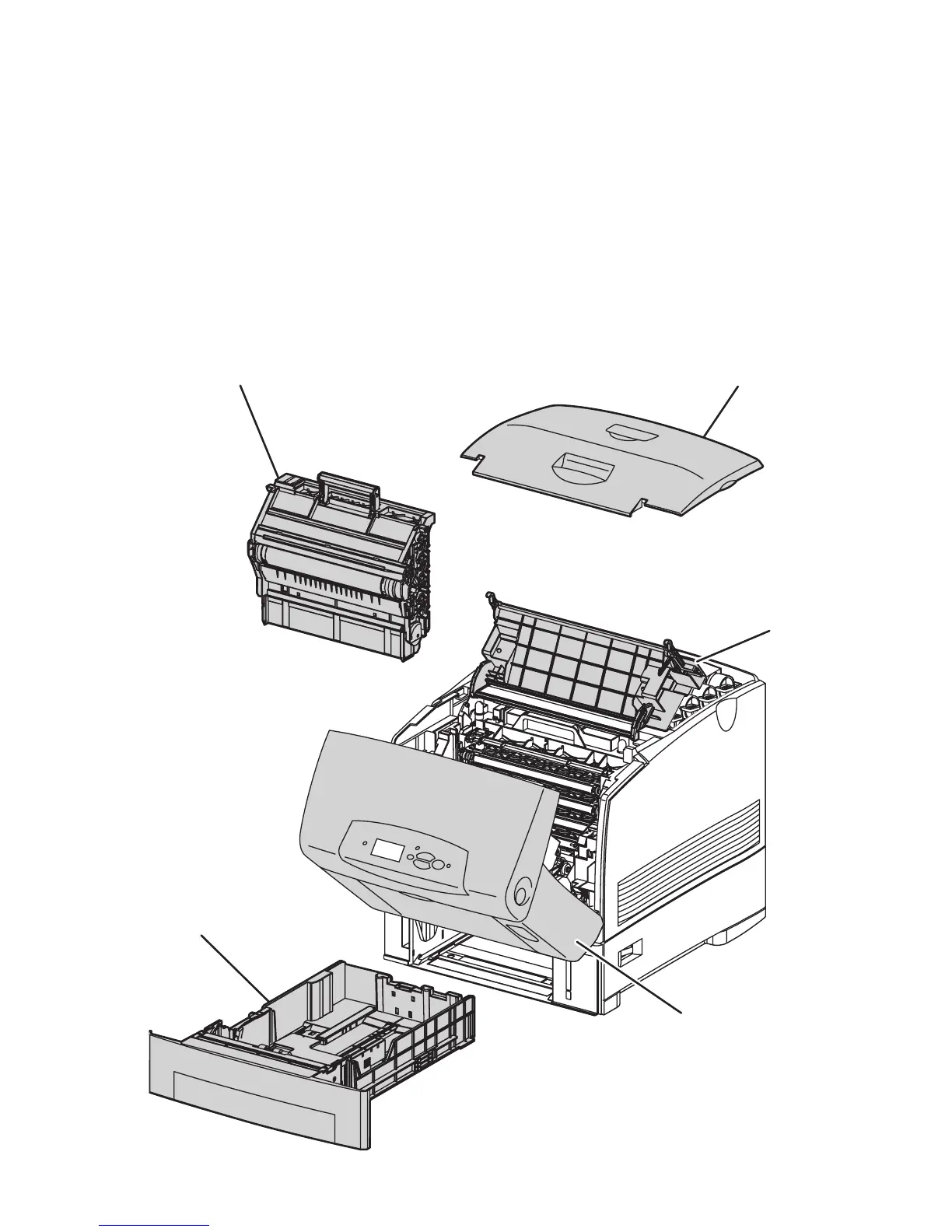

s6300-123
Top CoverImaging Unit
Door A
Door C
Tray
To Next Page
