Fujitsu Oracle SPARC M12-2

A
support to lower it.
For details on handling the cable support, see "9.8.1 Lowering the Cable Support."
If the cable support is not installed, this work is not required. Proceed to step 3.

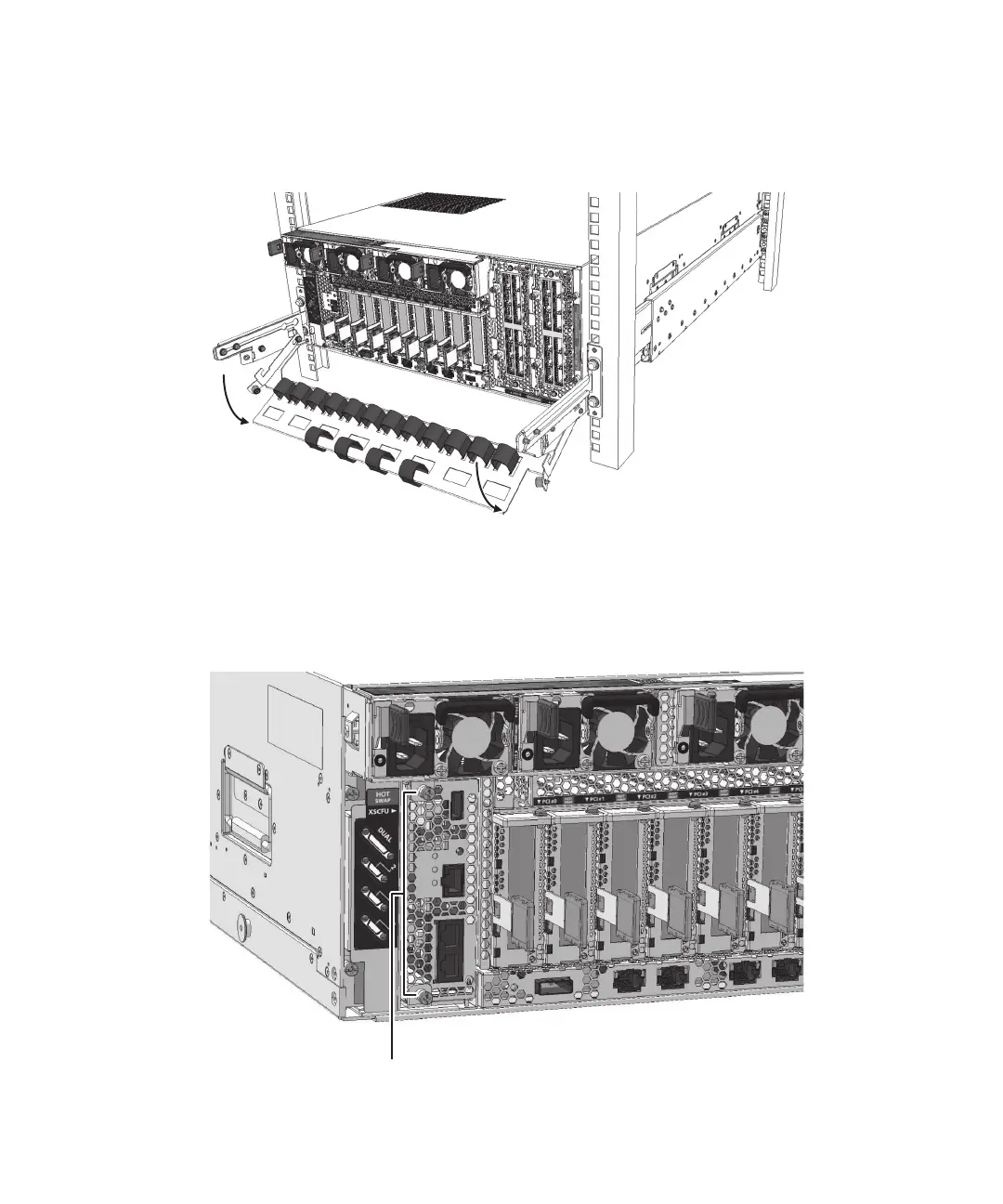

Figure 11-3
Lowering the Cable Support
3.
Release the XSCFU.
Loosen the two fixing screws (A in Figure 11-4) of the XSCFU to release the
levers.
Figure 11-4
Locations of the Fixing Screws in the Levers
4.
Disconnect
the XSCFU from the BPU.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023376
