Note -
In a building block configuration, the functions of the Mode switch and POWER
switch are disabled on the OPNL except for the master XSCF.
Note -
In a building block configuration where the crossbar boxes are connected, all the
OPNL functions are enabled only for the OPNL of the crossbar box used as the master XSCF.
(1)
(4)
(2)
(3)
(5)
(6)
Location No. LED/Switch
1 POWER LED
2XSCF STANDBY LED
3CHECK LED
4 BB-ID switch (only on SPARC M12-2S)
5Mode switch
6Power switch
Table 2-9
Functions of the OPNL LEDs and Switches
OPNL
LED/Switch
Functional Overview
POWER LED Indicates the run/stop status of the SPARC M12-2/M12-2S.
XSCF STANDBY LED Indicates the XSCF status of the system.
CHECK LED Indicates any abnormality of the SPARC M12-2/M12-2S.
M12-2S.
The OPNL is mounted at the lower right as seen from the front of the panel (see
Figure 2-1).
The OPNL provides the display and control functions of the system. The field
engineer and system administrator can control the operation mode or start/stop of
the system while checking the LEDs
indicating the system operation status.

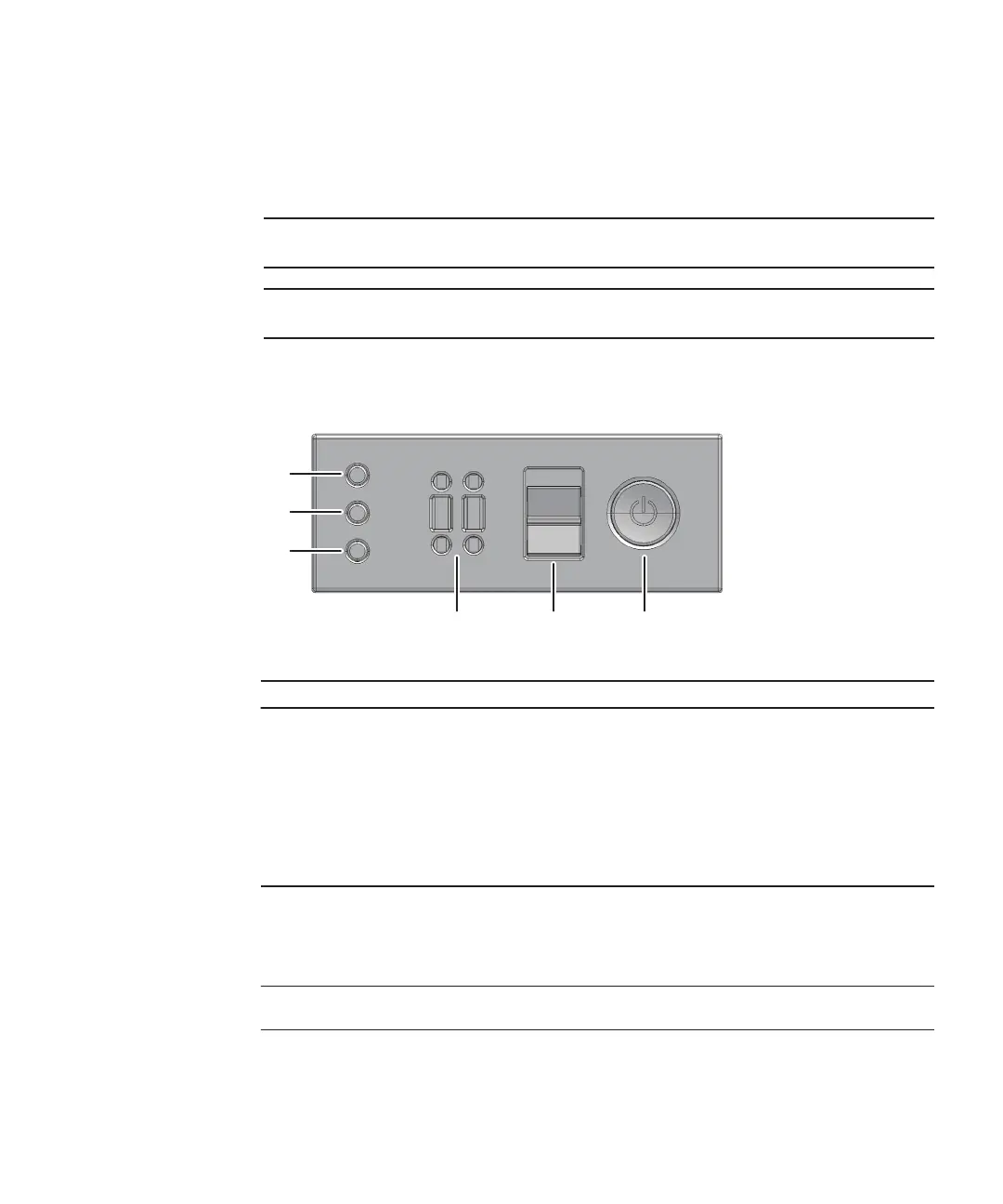

Figure 2-8
OPNL
Table 2-9 lists the functions of the OPNL LEDs and switches.
Chapter 2 Understanding the System Units 23
