Fujitsu Oracle SPARC M12-2 User Manual

Note -
The connection destinations of the PCIe cables are shown on the label affixed to the
CMUL. (A in Figure 17-26)
Note -
When connecting a PCIe cable connector, push it in all the way and make sure that it
does not come off.
A
to the CMUL.
Labels showing the connection destinations are affixed on the PCIe cables and
CMUL (A in Figure 17-26). Connect the PCIe cable connectors according to these
labels.
After connecting the PCIe cable connectors, route the PCIe cables through the
cable guide inside the server.

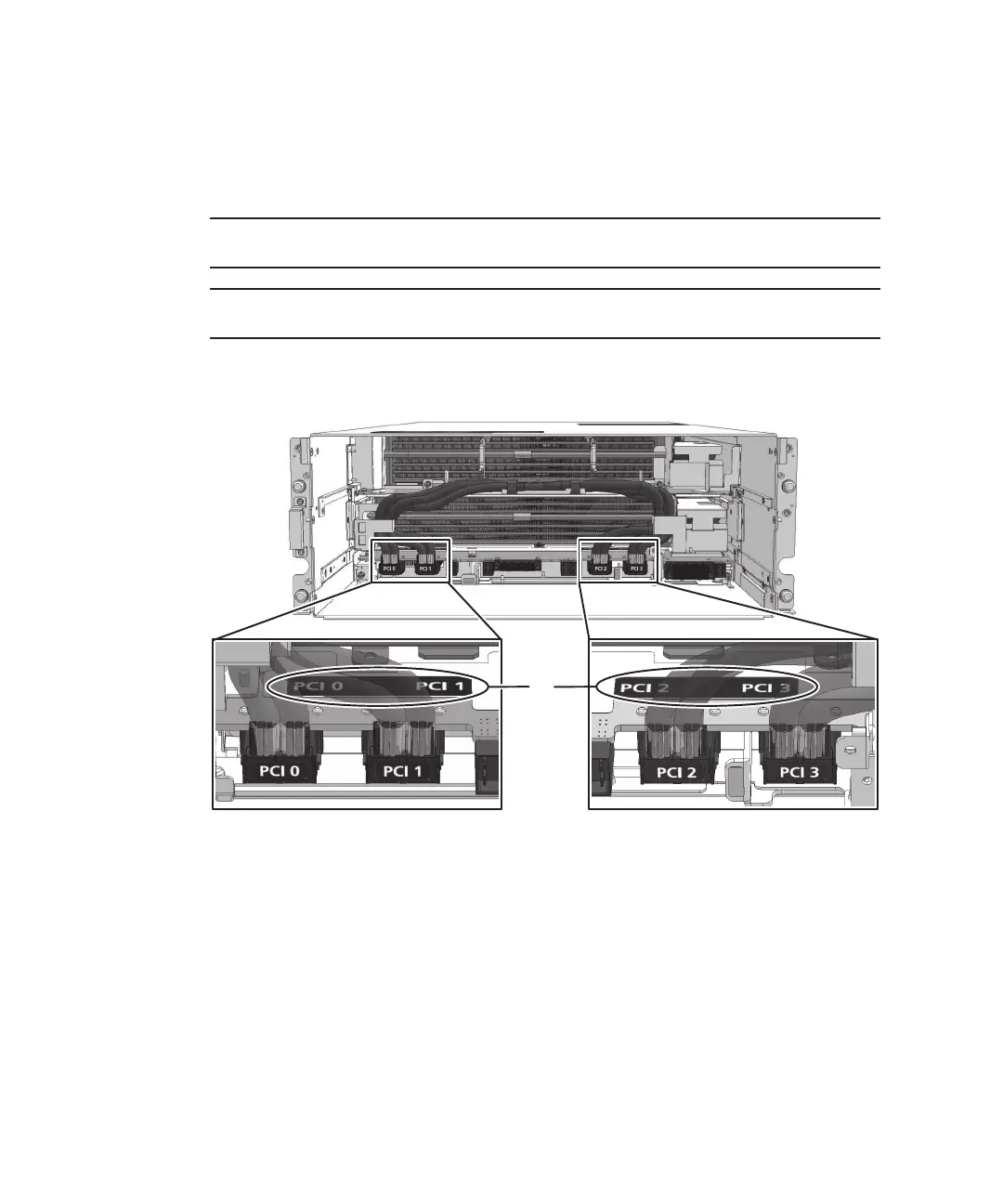

Figure 17-26
Connecting the PCIe
Cables and CMUL
5.
Insert the CMU filler unit.
Insert the CMU filler unit into the server. Hook the claws at the bottom of the
CMU filler unit (A in Figure 17-27) onto the top cover of the CMUL.
When the CMUU is mounted, this step is not necessary
.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023456
