Fujitsu Oracle SPARC M12-2 User Manual

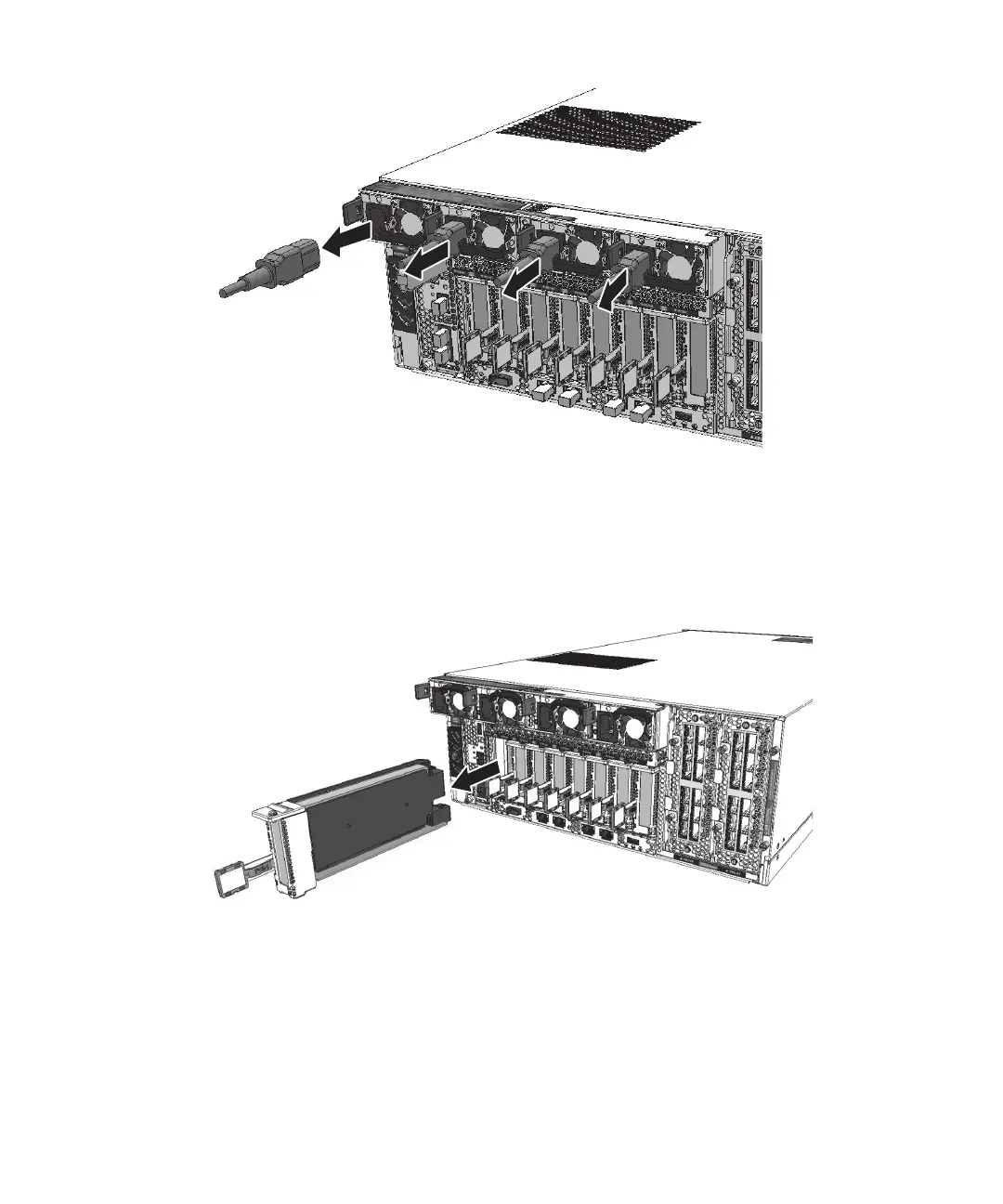

Figure 18-2
Removing a Power Cord
2.
Remove the PCICSs from the server.
Remove all the PCICSs from the server. For details, see "12.3.1 Enabling the
Removal of a PCIe Card." You do not need to remove the PCIe cards from the
PCICSs.
Figure 18-3
Removing the PCICS
3.
Remove the crossbar cables.
Remove all the crossbar cables connected to the XBU. For details, see "19.3
Removing the Crossbar Cable." Note that, when you use only one SPARC M12-2
or SPARC M12-2S unit, this step is not necessary.
When using only one SPARC M12-2S unit, proceed to step 4. When using only
one
SPARC M12-2 unit, proceed to step 5.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023466
