A
B
A
Note -
The serial number of the server is printed on a label affixed on the front cover. Store
this cover such that it is not mixed up with the front covers of other SPARC M12 units.

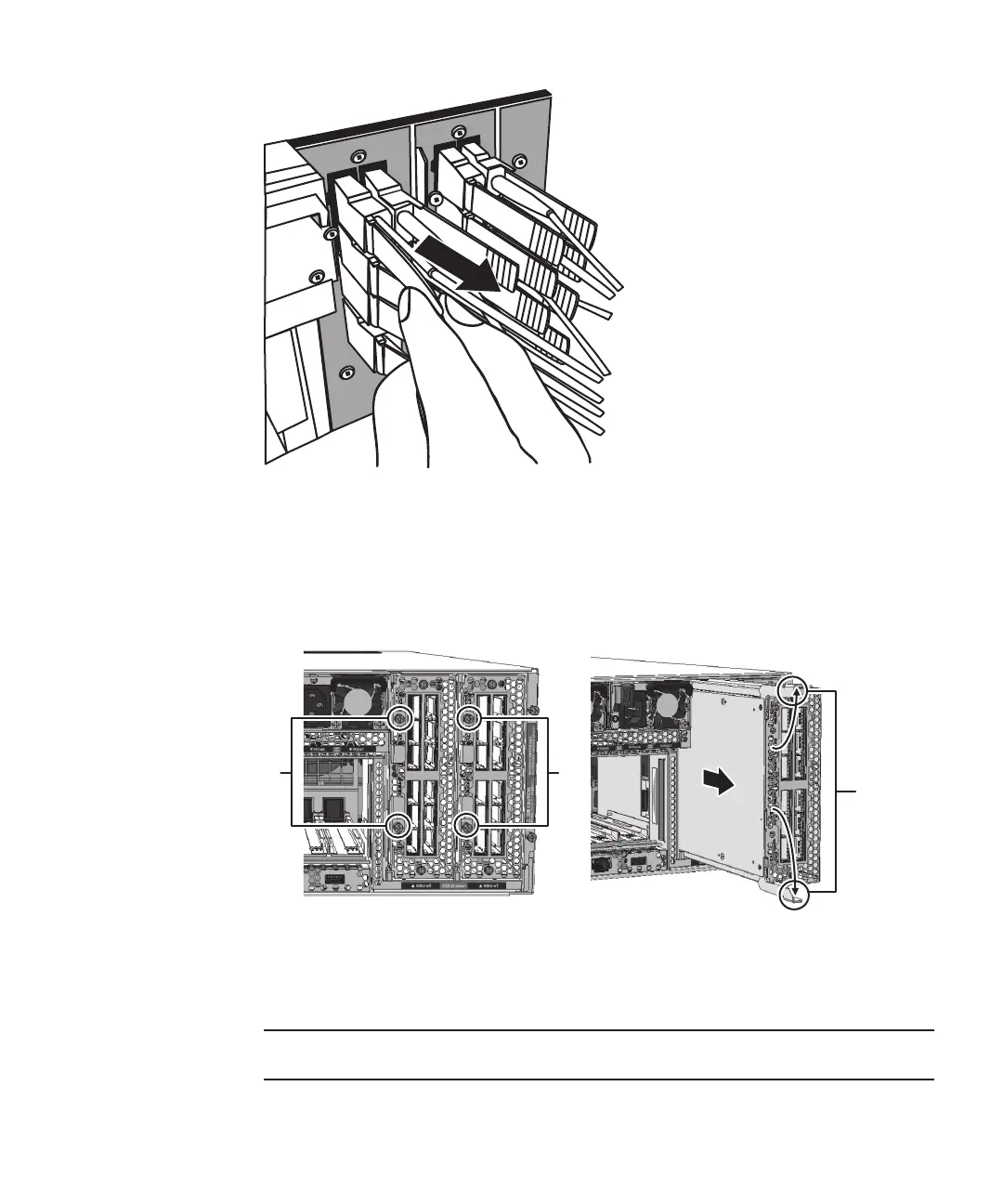

Figure 18-4
Removing the Crossbar Cable
4.
Remove the XBU.
Loosen the two fixing screws (A in Figure 18-5) of the removal levers, and
remove the XBU from the server with the removal levers (B in Figure 18-5) open.
For details, see "20.3 Removing an XBU."
Figure 18-5
Removing the XBU
5.
Remove the front cover.
For the procedure for removing the front cover, see "9.8.3 Removing the Front
Cover."
6.
Remove the FANUs and FANBPU.
Chapter 18 Maintaining the Backplane Unit and PSU Backplane Unit 467
