Caution -
Pulling out the CMUL with these cables (LAN, SAS, USB, or other cables)
connected may damage the connectors.
Remove all the FANUs from the FANBPU, and then remove the FANBPU from
the server. For details, see "14.3 Removing a FANU or the FANBPU."

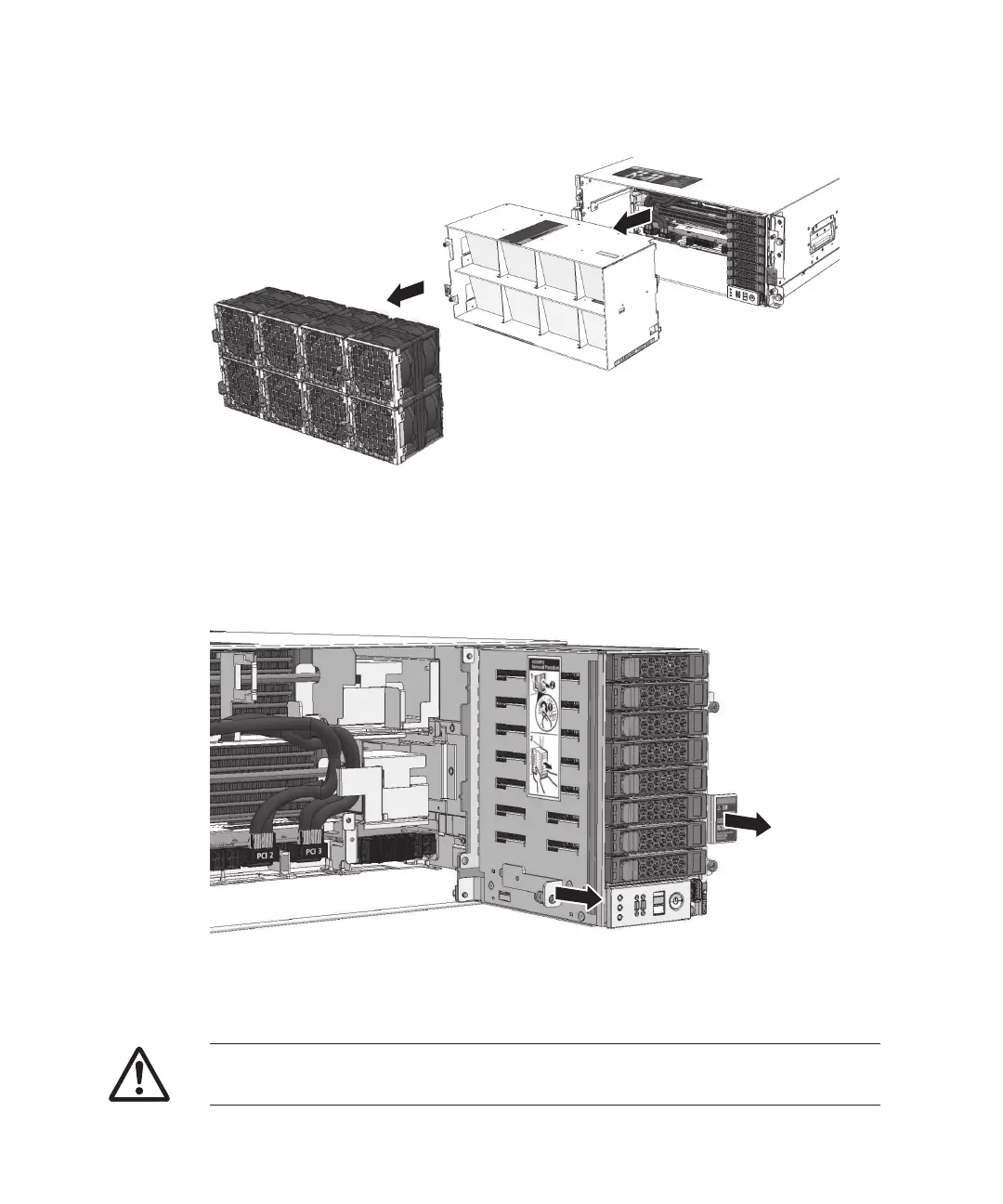

Figure 18-6
Removing the FANUs and FANBPU
7.
Remove the HDDBPU.
Remove the HDDBPU from the server. For details, see "16.3 Removing the
HDDBPU or OPNL."
Figure 18-7
Removing the HDDBPU
8.
The CMUL may have a LAN cable, SAS cable, USB cable, or other cable
connected to it. Remove them all.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023468
