9.
Disconnect the CMUL and CMUU from the BPU.
Loosen the fixing screws of the CMUL and CMUU, and pull them out to the
opening of the server. For details, see "17.4.2 Removing the CMU." When the
CMU filler unit is mounted, remove it from the server.

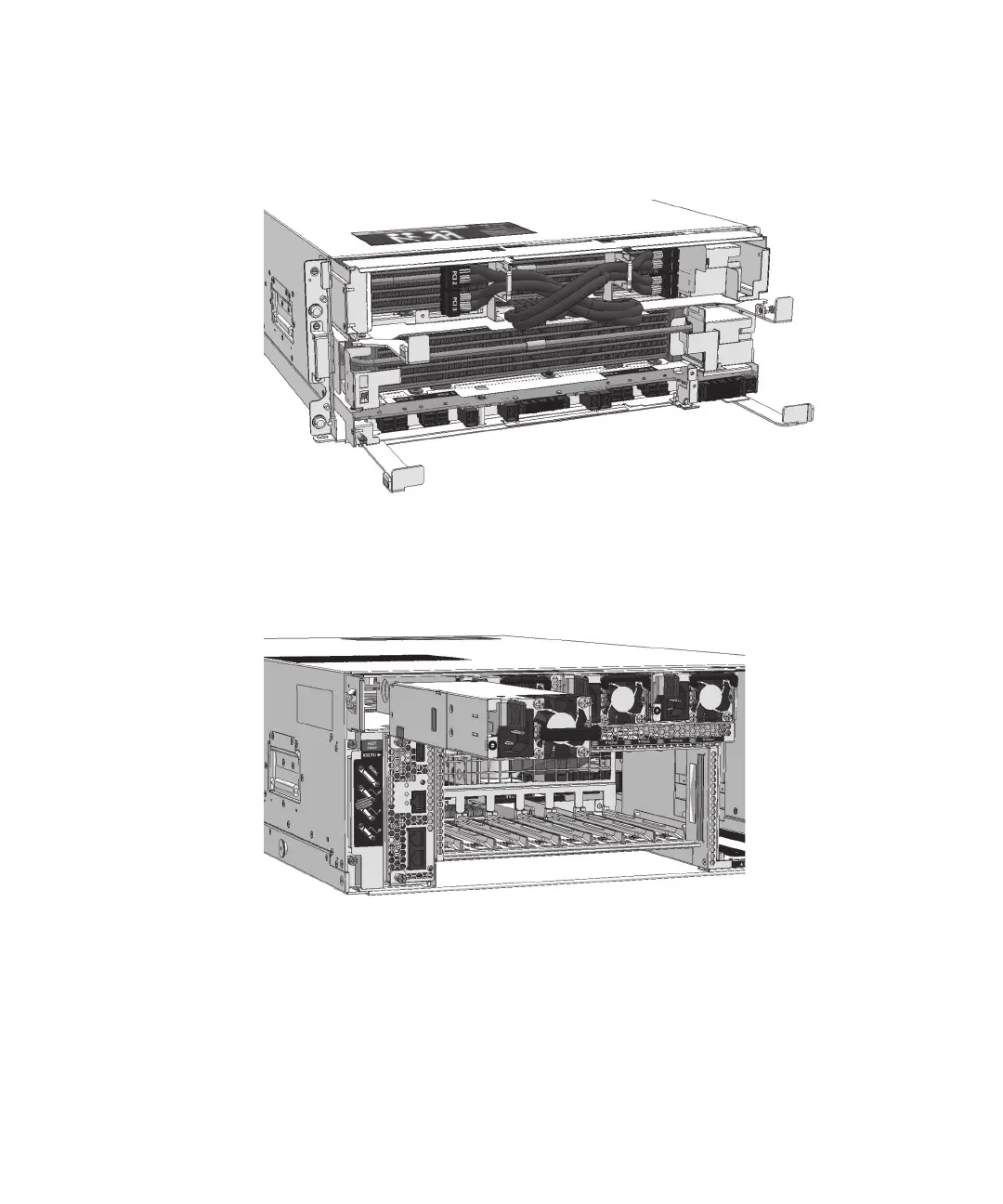

Figure 18-8
Pulling Out
the CMU
10.
Remove the PSUs.
Remove all the PSUs from the server. For details, see "13.3 Removing a PSU."
Figure 18-9
Removing a PSU
11.
Remove the XSCF DUAL control cable and XSCF BB control cable.
Remove the XSCF DUAL control cable and XSCF BB control cable from the
server. For details,
see "21.3 Removing the XSCF DUAL Control Cable" and
"22.3 Removing the XSCF BB Control Cable."
Note that, for a configuration that uses only one SPARC M12-2 or SPARC
M12-2S unit, this step is not necessary. Proceed to step 12.
Chapter 18 Maintaining the Backplane Unit and PSU Backplane Unit 469
