Fujitsu Oracle SPARC M12-2 User Manual

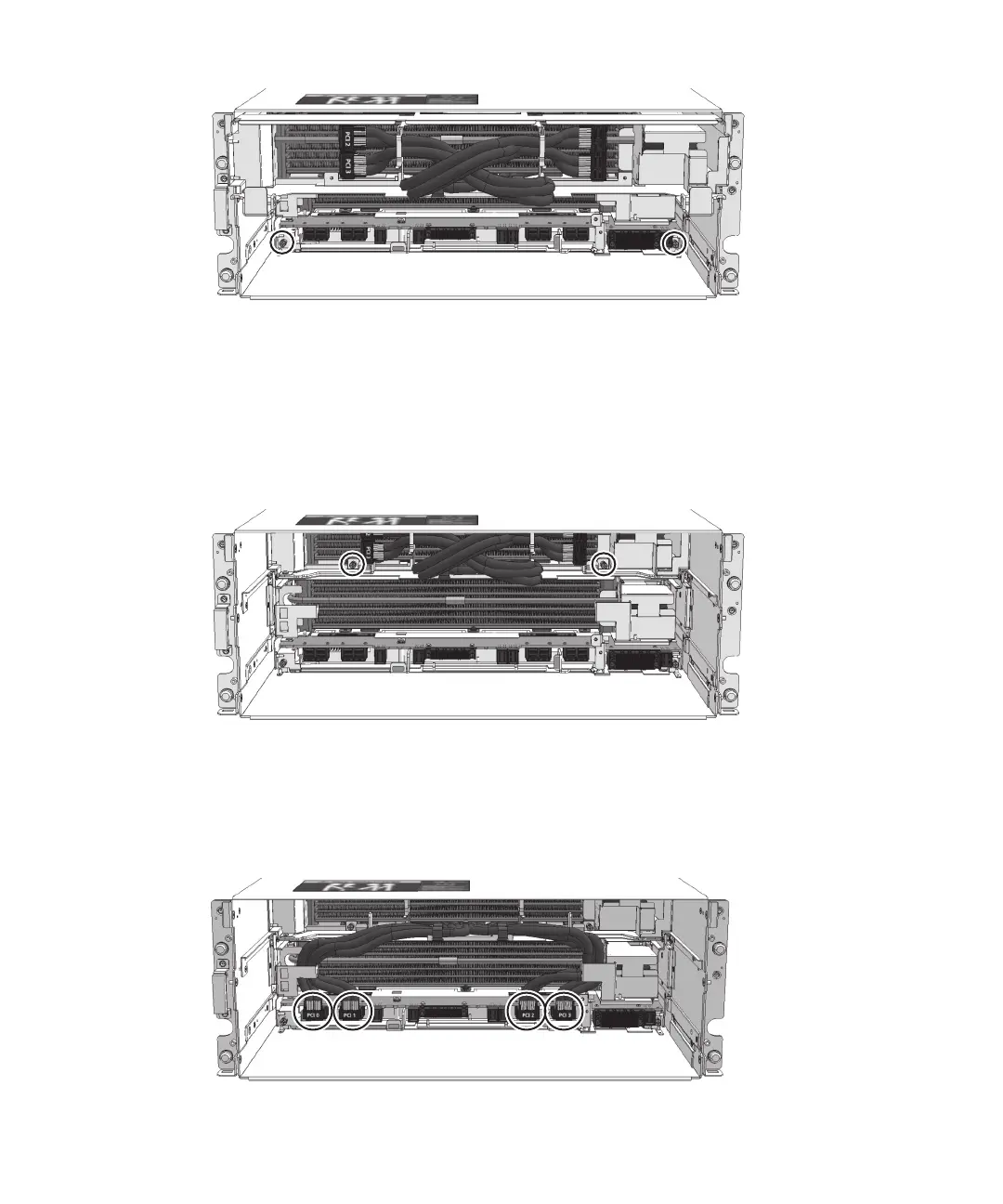

Figure 18-23
Connecting the CMUL to the BPU
2.
Secure the CMUU.
Insert the CMUU into the server, with the CMUU levers open. Then, tighten the
two fixing screws to secure the CMUU to the server. For details, see "17.5.2
Installing the CMU."
When the CMUU is not mounted, this step is
not necessary. Proceed to step 4.
Figure 18-24
Connecting the CMUU to the BPU
3.
Connect the PCIe cables.
Remove the PCIe cables from the cable clamps and connect them to the CMUL.
For details, see step 4 in "17.5.2 Installing the CMU."
Figure 18-25
Connecting the PCIe Cables
4.
Install the CMU
filler unit.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023480
