Note -
If the CMUU is mounted or the CMU filler unit is not mounted, this step is not
necessary. Proceed to step 5.
Install the CMU filler unit. For details, see step 5 in "17.5.2 Installing the CMU."

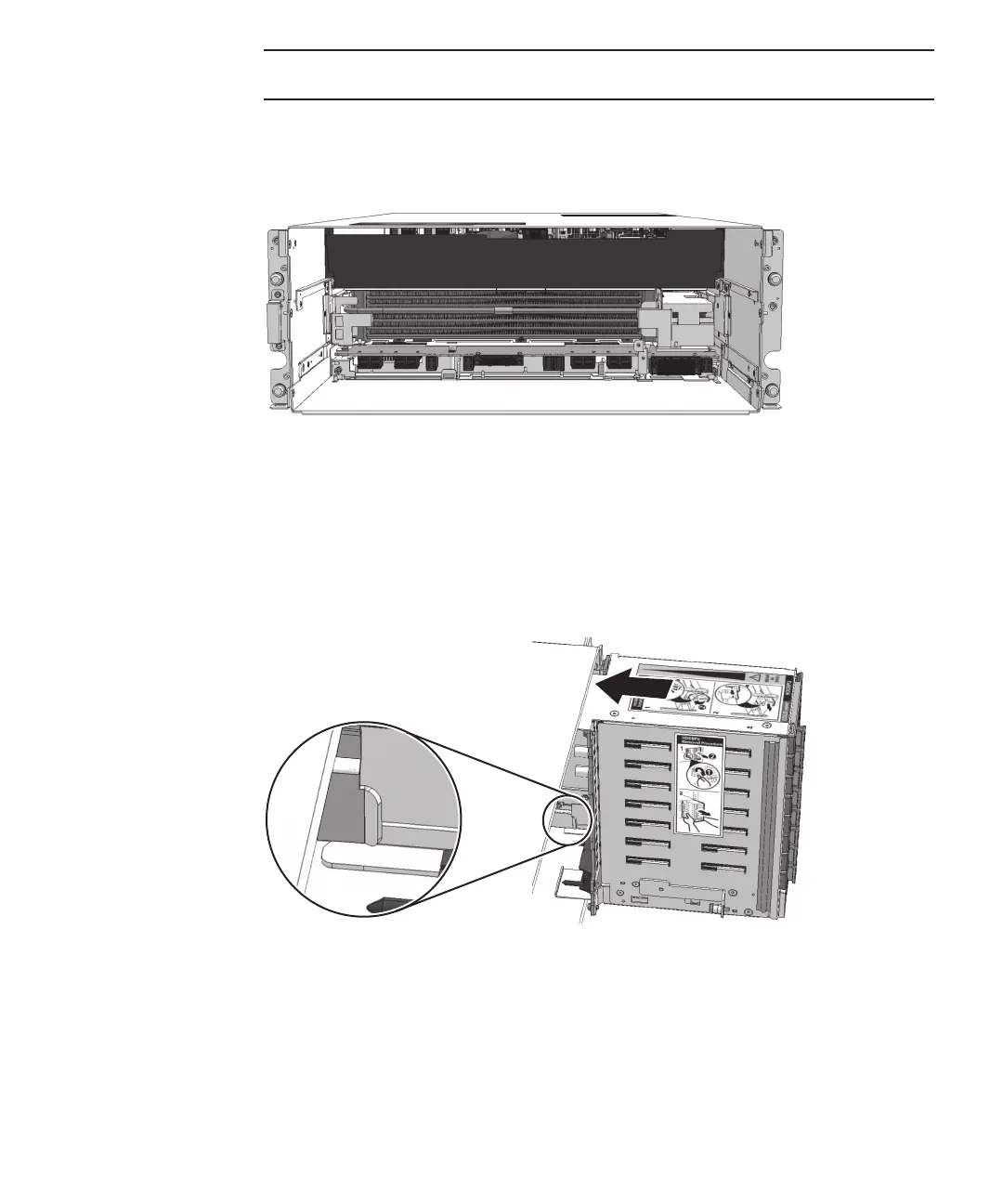

Figure 18-26
Securing the Filler Unit
5.
Install the HDDBPU.
Align the positioning guide of the HDDBPU with the guide on the front right
side inside the server. Then, install the HDDBPU in the server and tighten
the
fixing screws to secure it. For details, see "16.4.2 Installing the HDDBPU in the
Server."
Figure 18-27
Connecting the CMU While Keeping It Aligned with the Positioning
Guide of the HDDBPU
Chapter 18 Maintaining the Backplane Unit and PSU Backplane Unit 481
