Note -
Install all of the four PSUs in the server.

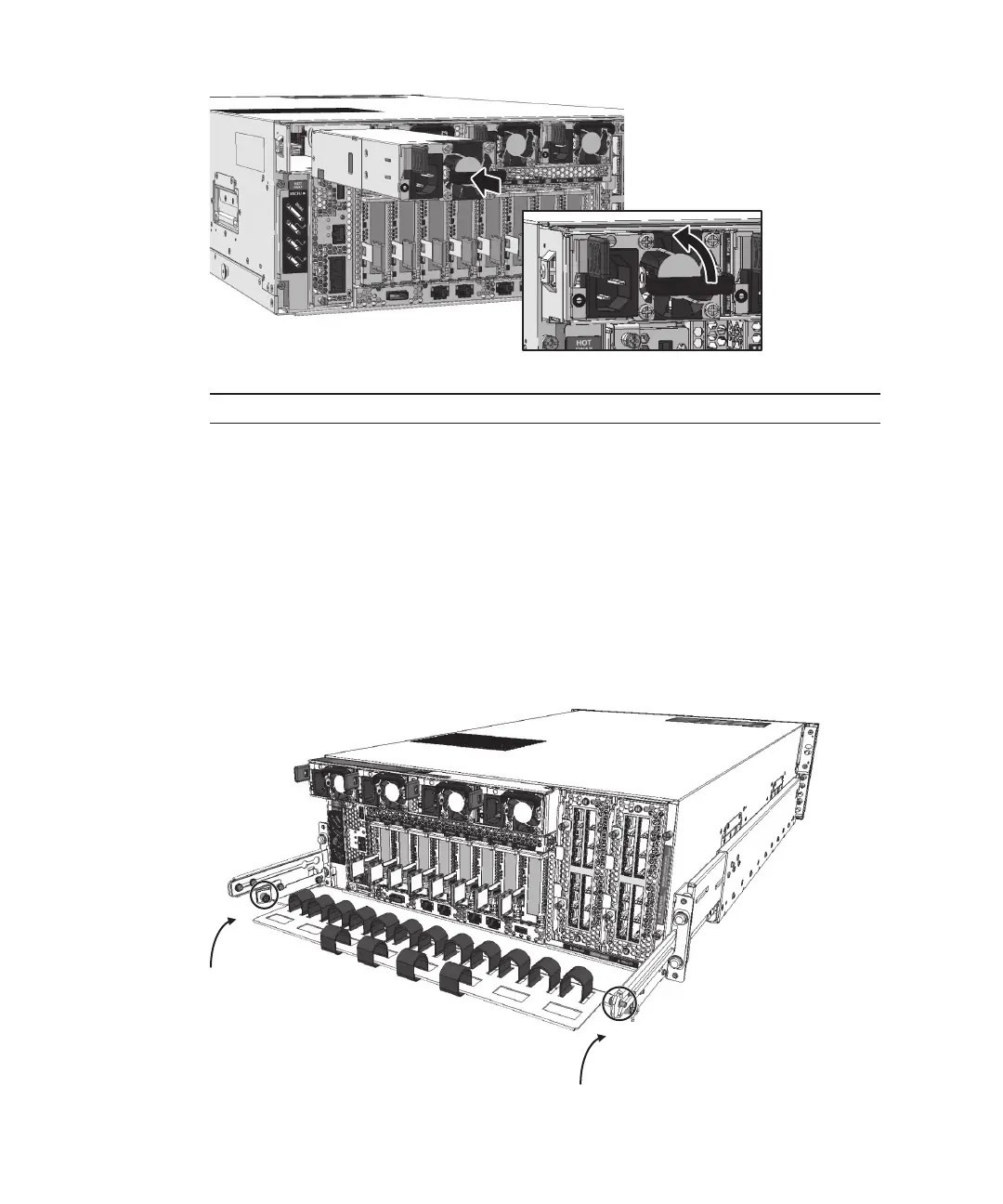

Figure 18-35
Installing the PSUs
13.
Connect the cables.
Connect the cables to the XSCFU, PCIe cards, and on-board I/Os. For the SPARC
M12-2S in a multiple-BB configuration, connect the XSCF DUAL control cable
and XSCF BB control cable.
14.
Secure the cable support.
Return the cable support to the original position and tighten
the two screws to
secure it.
Figure 18-36
Securing the Cable Support
