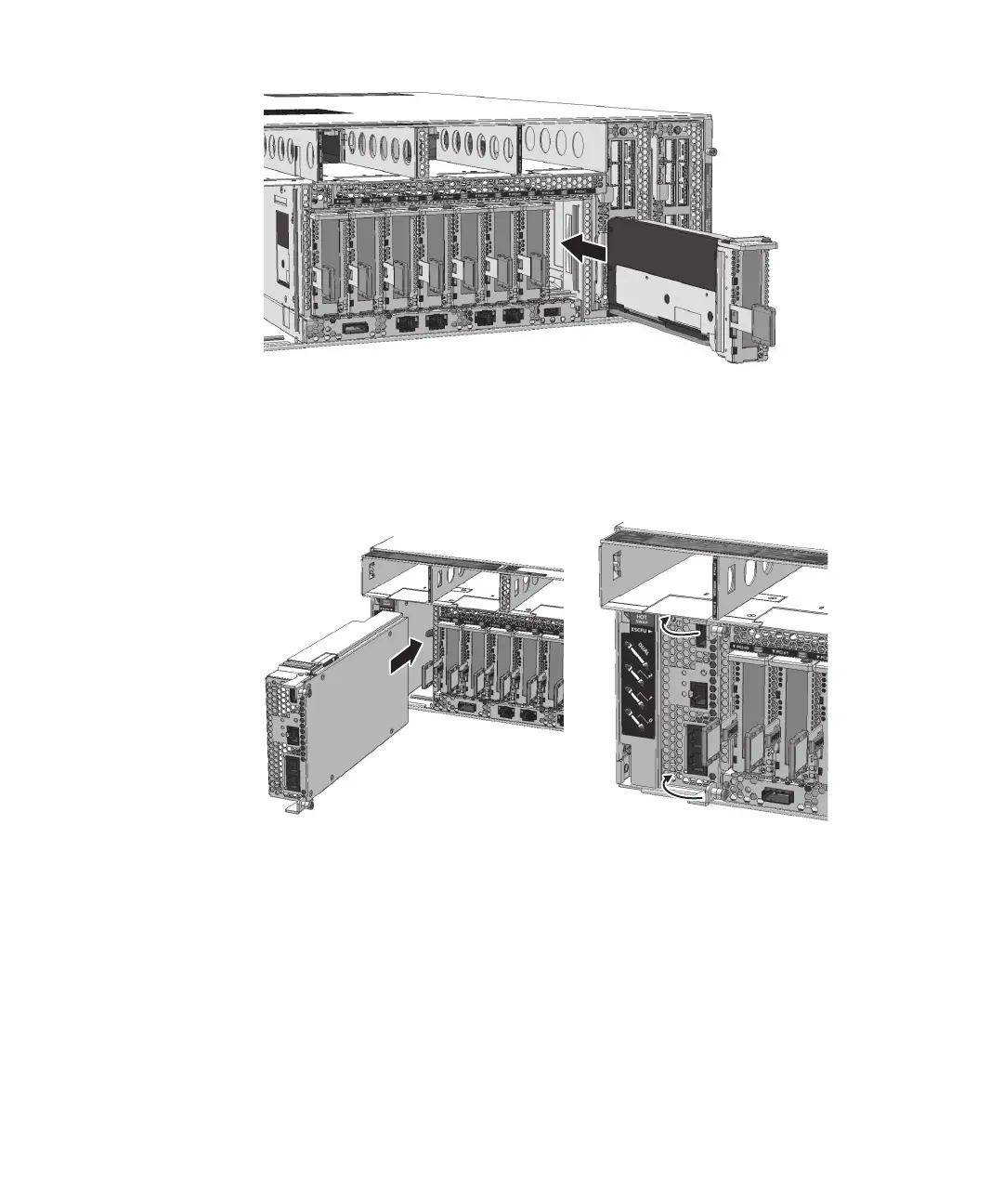

Figure 18-33
Installing the PCICS
11.
Install the XSCFU.
Install the XSCFU in the server, and secure it by tightening the two fixing screws.
For details, see "11.6 Installing the XSCFU."
Figure 18-34
Installing the XSCFU
12.
Install the PSUs.
Install the PSUs to the server. Do not install the power cords yet.
For details, see
"13.4 Installing a PSU."
Chapter 18 Maintaining the Backplane Unit and PSU Backplane Unit 485
