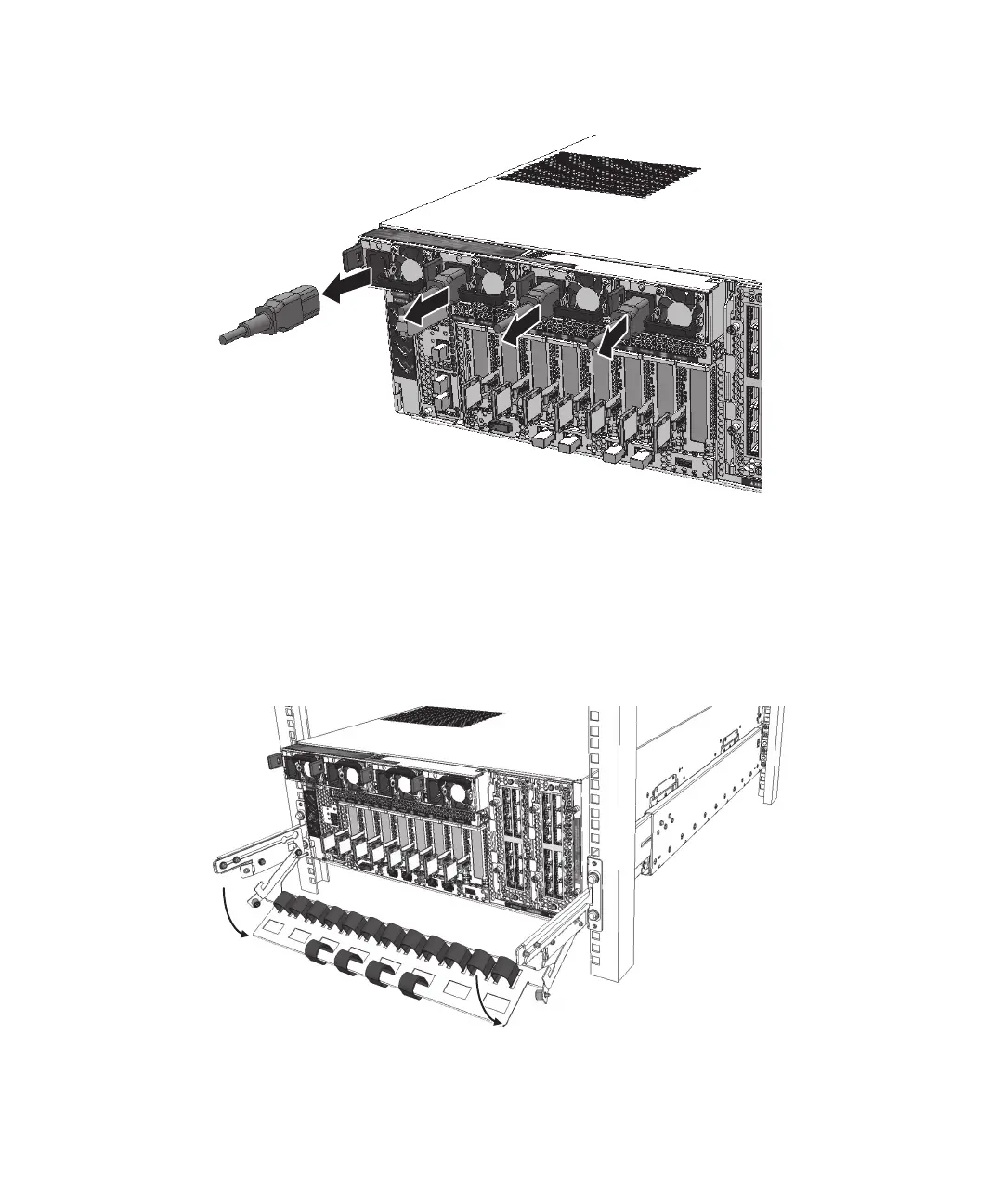

Figure 19-4
Removing a Power Cord
4.
Unbundle the crossbar cable.
Release the crossbar cable to be replaced, by removing the hook-and-loop
fastener that bundles the crossbar cable.
5.
Lower the cable support.
Loosen the fixing screws, pull out the cable support, and lower the cable support.
Figure 19-5
Lowering the Cable Support
6.
Remove the crossbar cable.
Pull the pull-tab (Figure 19-6 and A in Figure 19-7) of the crossbar cable to
release the lock of the connector and the XBU, and remove the crossbar cable.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023494
