Name: Intel EP80579
Brand: Intel
Rating: 5 (1 reviews)

To Next Page

To Previous Page

Intel

EP80579 Integrated Processor Product Line—System Memory Interface (DIMM)

Intel

EP80579 Integrated Processor Product Line

Platform Design Guide May 2010

127 Order Number: 320068-005US

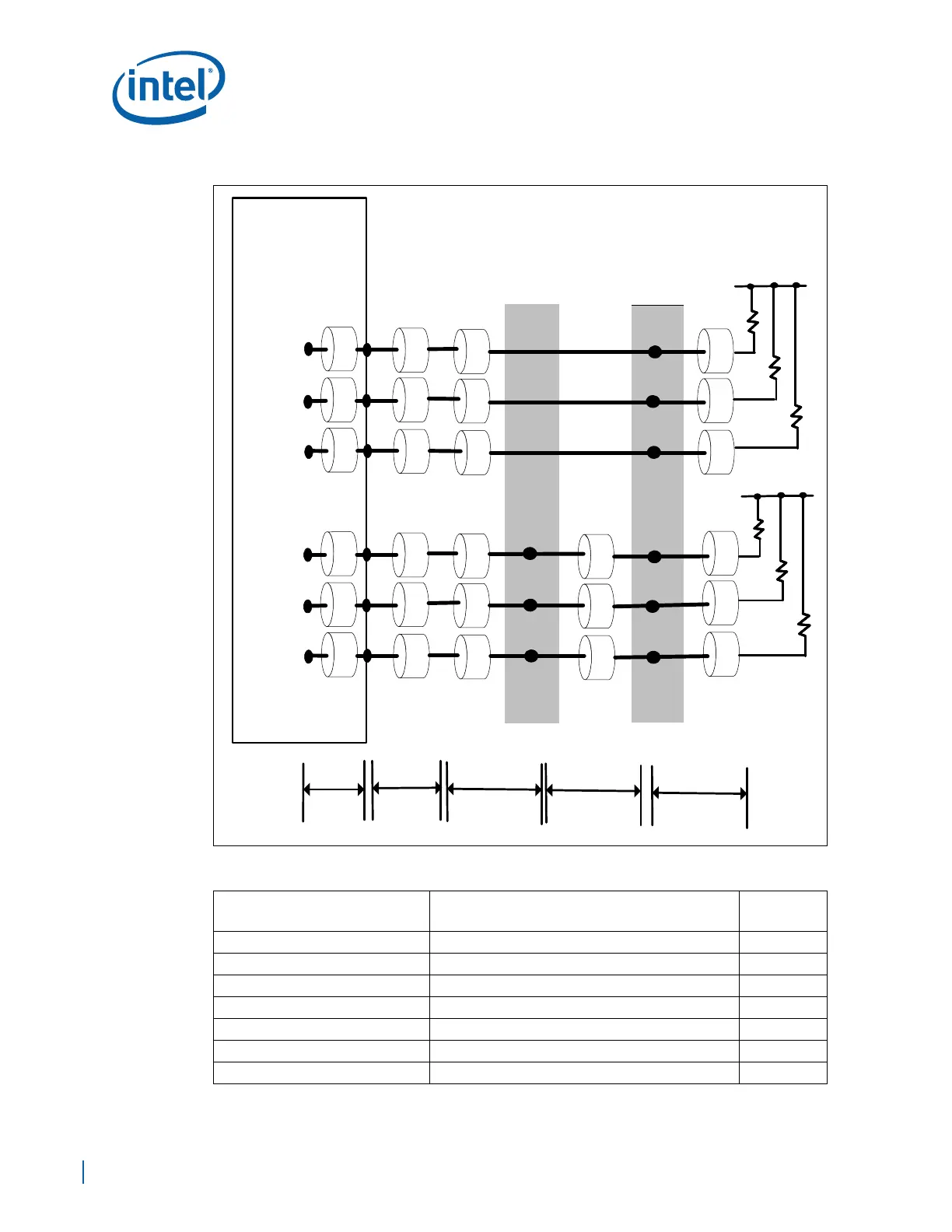

Figure 81. DDR2 Control Signals- Implementation

Table 42. DDR2 Control Signal Group Routing Guidelines (Sheet 1 of 2)

Parameter

Routing Guidelines for 2-DIMM Solution with

ODT

Figure

Signal Group Control Signals (CS#/ODT/CKE)

Topology Daisy Chain Figure 76

Reference Plane Ground Referenced

Layer Assignment Layers 3/8

Characteristic Trace Impedance (Zo) 40 Ω ±10% Figure 81

Nominal Trace Width 6.5 mils Figure 81

Nominal Trace Spacing (e2e) 15 mils Figure 81

EP80579

DIMM 1

ODT0

Package

Trace

Breakout

Routing

Board

Routing

CKE0

CS0#

CKE1

CS1#

ODT1

DIMM 0

BREAK

ROUTE

PKG

D2D

TERM

DIMM2DIMM

Routing

VTT_DDR

Rtt

VTT_DDR

Rtt
