6.6.3.1 High Current Path, Top MOSFET Turned ON
The dashed/arrow line in Figure 42 indicates the high current path when the top
MOSFET is ON. Current flows from the V_DC power source through the top MOSFET
(there may be more than one of these), the inductor and sense resistor, and finally, the
processor, R
Load
, to ground. The components and current paths shown must be able to
not only carry the high current through the processor, but the power source and ground
must also be adequate.
6.6.3.2 High Current Paths During Abrupt Load Current Changes
During abrupt changes in the load current, the bulk and decoupling capacitors must
supply current for the brief period before the regulator circuit may respond. The
dashed/arrow line in Figure 43 illustrates this current path. Stray inductance and
resistance become a major concern and when they are not minimized, as they may
compromise the effectiveness of the capacitors. Bulk capacitors for Vcc must be located
at the highest current density points. These high-density points are located along the
shortest route between the processor core and the sense resistor. Using short, fat
traces or planes may minimize both stray inductance and resistance.

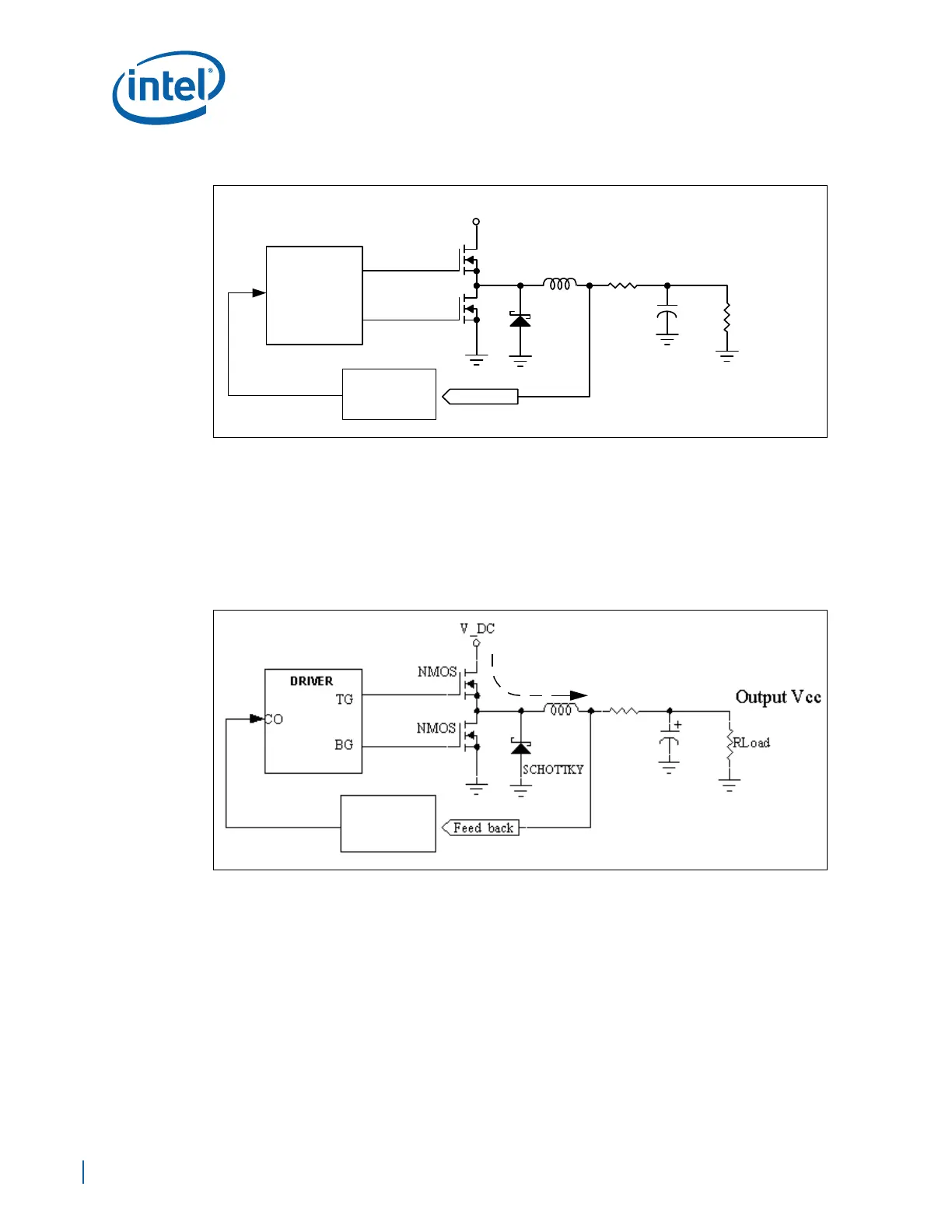

Figure 41. Buck Voltage Regulator Example
Output Vcc
Feed back
SCHOTTKY
RLoad
+
V_DC
NMOS
NMOS
DRIVER
CO
TG
BG
IMVP-IV
Control
Circuitry
Voltage
Regulator
Control Circuitry
