Intel EP80579 Guide

Intel
®
EP80579 Integrated Processor Product Line—Universal Serial Bus (USB) Interface
Intel
®
EP80579 Integrated Processor Product Line
Platform Design Guide May 2010
166 Order Number: 320068-005US
Length Tuning Requirements
Length matching over LT within a pair is 60 mils or
less.
-
EP80579 Breakout
4 mils width with 4 mils spacing for maximum of
500 mils, minimize this length.
-
Note:
1. Strictly observe the characteristic trace impedance. In this regard, requirements for the layers, trace
width, and trace spacing are secondary.

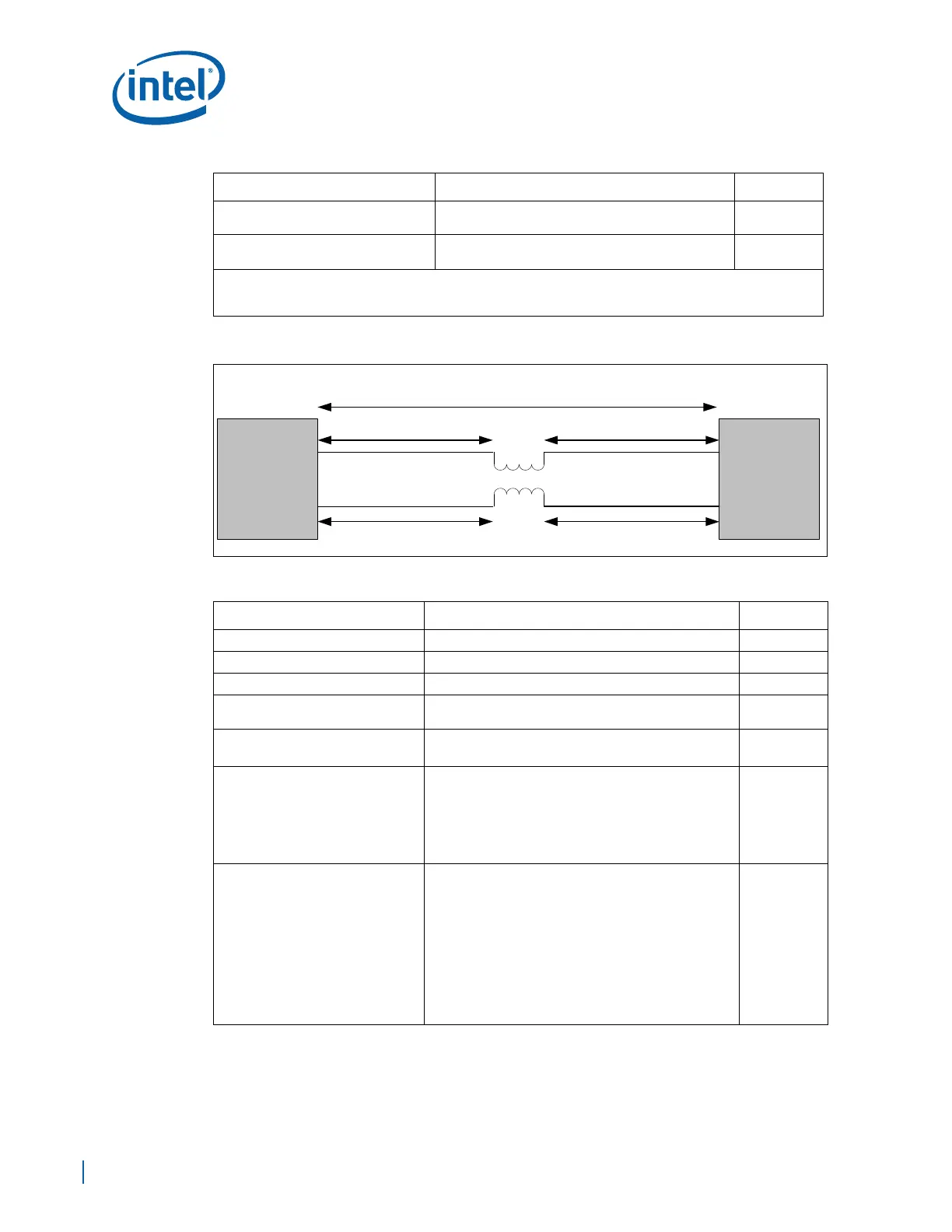

Figure 109. USB Trace Lengths From Controller to Connector
Table 61. Case 2, USB Routing Guidelines – EP80579
Front Panel Option (Sheet 1 of 2)
Parameter Routing Guidelines Figure
Signal Group USBp[1:0], USBn[1:0] -
Reference Plane Ground Referenced, Stripline or Microstrip -
Layer Assignment Layers 3 or 8 -
Characteristic Trace Impedance
(Zo)
1
90 Ω ±10% (differential) -
Nominal Trace Width
4.75 mils – microstrip
4.5 mils – stripline
Figure 112
Figure 113
Nominal Trace Spacing
Trace Spacing, edge-to-edge:
5.25 mils–microstrip
5.5 mils– stripline
Pair-to-pair spacing, edge to edge: 45 mils minimum
Spacing to clock signals: 45 mils minimum
Spacing to non-clock signals: 45 mils minimum
Figure 112
Figure 113
Nominal Trace Length
2
Keep all lengths as short as possible.
L1 = 1500 mils maximum
L2 = LT - L1 - L3
L3 = 1000 mils maximum
LT (to connector =
2–11 in. – microstrip (differential)
2–10 in. – stripline (differential)
LT to a header is dependent on the length of the cable
connecting the header to the front panel daughter
card. See Table 63 for detailed trace length
requirements.
Figure 110
Table 60. Case 1, USB Routing Guidelines – EP80579 to Connector (Sheet 2 of 2)
Parameter Routing Guidelines Figure
EP80579
USB
Connector
Choke
L1'
L1
LT = L1 + L2
L2'
L2
