EP80579 Integrated Processor Product Line—Serial ATA (SATA) Interface
Intel
®
EP80579 Integrated Processor Product Line
Platform Design Guide May 2010
156 Order Number: 320068-005US

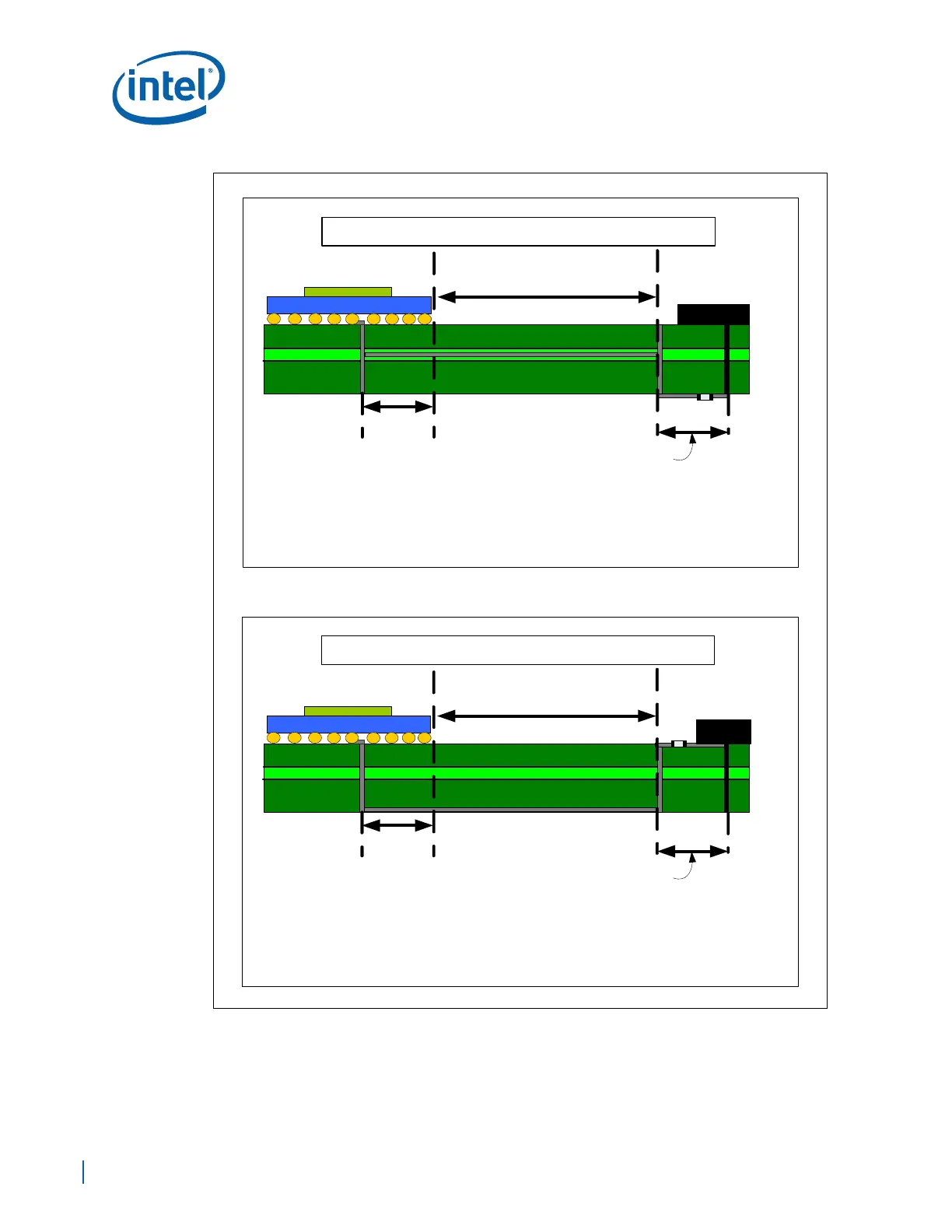

Figure 100. SATA PCB Routing
Layer 3 or 8
Breakout
EP80579 Pkg
Main Board Routing
SATA
CONN
Microstrip Board Routing
L1
L2
L3
SATA Tx and Rx Stripline PCB Routing
NOTE: Breakout\ Breakin descriptions are as follows:
1. Routing where trace is 4 .00 mil wide and 4.00 mil (e2e)
complimentary pair spacing is implemented to escape\ enter BGA
2. The Breakout \ Breakin Length is defined from the pin of the BGA, to where
to the required spacing.
the 4.00 mil trace and 4.00 mil (e2e) complimentary pair spacing increases
Layer 3 or 8
Breakout
EP80579 Pkg
Main Board Routing
SATA
CONN
Microstrip Board Routing
L1
L2
L3
SATA Tx and Rx Microstrip PCB Routing
NOTE: Breakout\ Breakin descriptions are as follows:
1. Routing where trace is 4 .00 mil wide and 4.00 mil (e2e)
complimentary pair spacing is implemented to escape\ enter BGA
2. The Breakout \ Breakin Length is defined from the pin of the BGA, to where
to the required spacing.
the 4.00 mil trace and 4.00 mil (e2e) complimentary pair spacing increases
AC CAP
AC CAP
