EP80579 Integrated Processor Product Line—Gigabit Ethernet (GbE) Interface
Intel
®
EP80579 Integrated Processor Product Line
Platform Design Guide May 2010
223 Order Number: 320068-005US

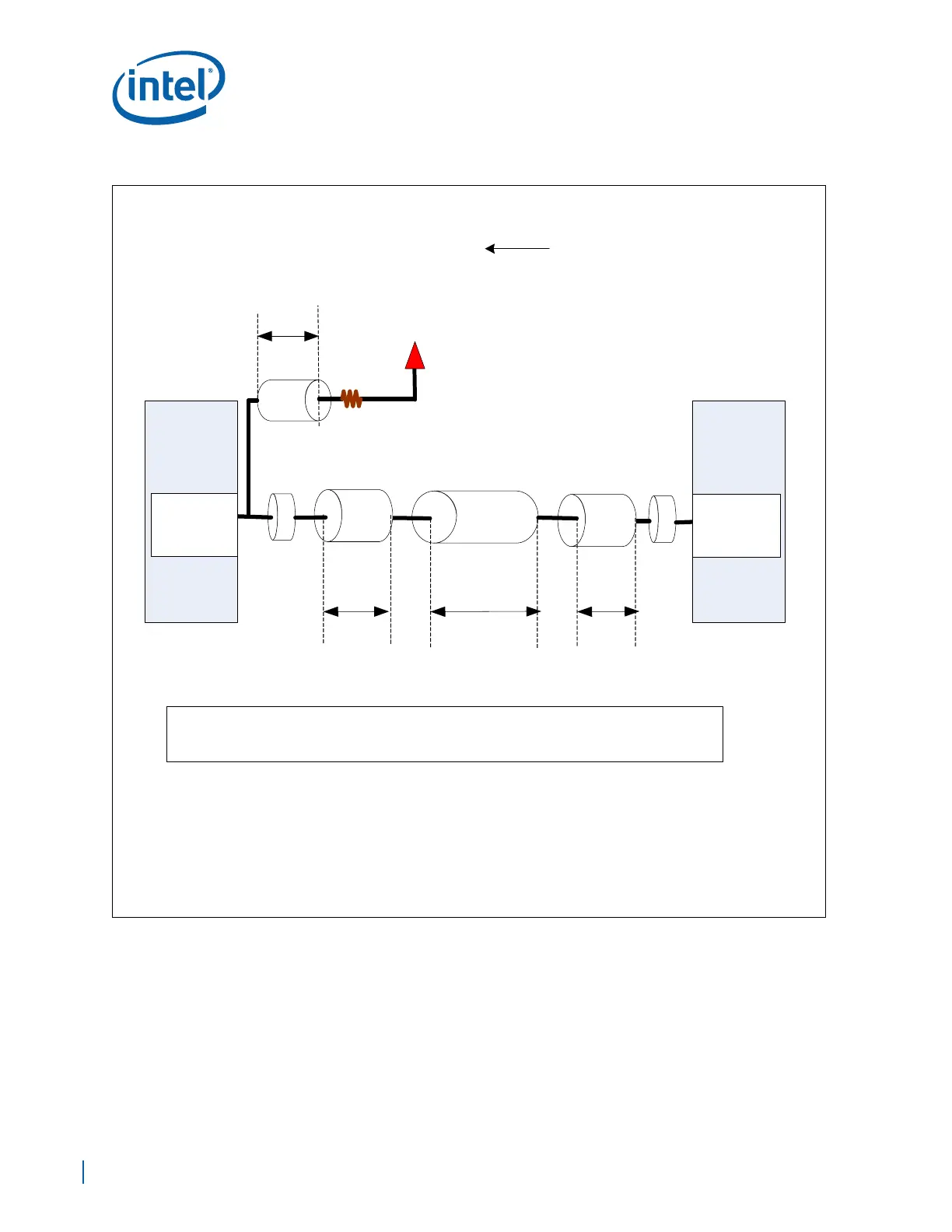

Figure 140. GbE RGMII Receive Path Clock Topology
V2P5
Via
Break in
Break out Board
Receiver
Clock
PHY
EP80579
LCLK_Brk_in_rx LCLK_Brd_route_rxLCLK_Brk_out_rx
L
Pull_up
LCLK_Brk_out_rx + LCLK_Brd_route_rx + LCLK_Brk_in_rxLCLK_Total_rx =
NOTE: Breakout\ Breakin descriptions are as follows:
1. Routing where trace is 3.75 mil wide and 4mil spacing is implemented to escape\ enter BGA
2. The Breakout \ Breakin Length is defined from the pin of the BGA, to where 4 mil spacing
increases to the required spacing per SI recommendations.
a). Clock = 20 mil edge-to-edge (e2e) for Stripline
b). Clock = 25 mil edge-to-edge (e2e) for Microstrip
Transmitter
Clock
Via
RGMII Receive Path Clock Topology
(EP80579 PHY)
Pull Up
TL (μs)
Rpull up
