Intel
®
EP80579 Integrated Processor Product Line May 2010
Order Number: 320068-005US 161
Serial ATA (SATA) Interface—Intel
®
EP80579 Integrated Processor Product Line
An additional consideration is the relative placement to other SATA host connectors as
well as other neighboring parts and devices on the motherboard. Figure 107 shows an
example of a case where two adjacent SATA host connectors were placed too close to
one another. Figure 108 shows the minimum host connector spacings recommended in
the SATA specification.

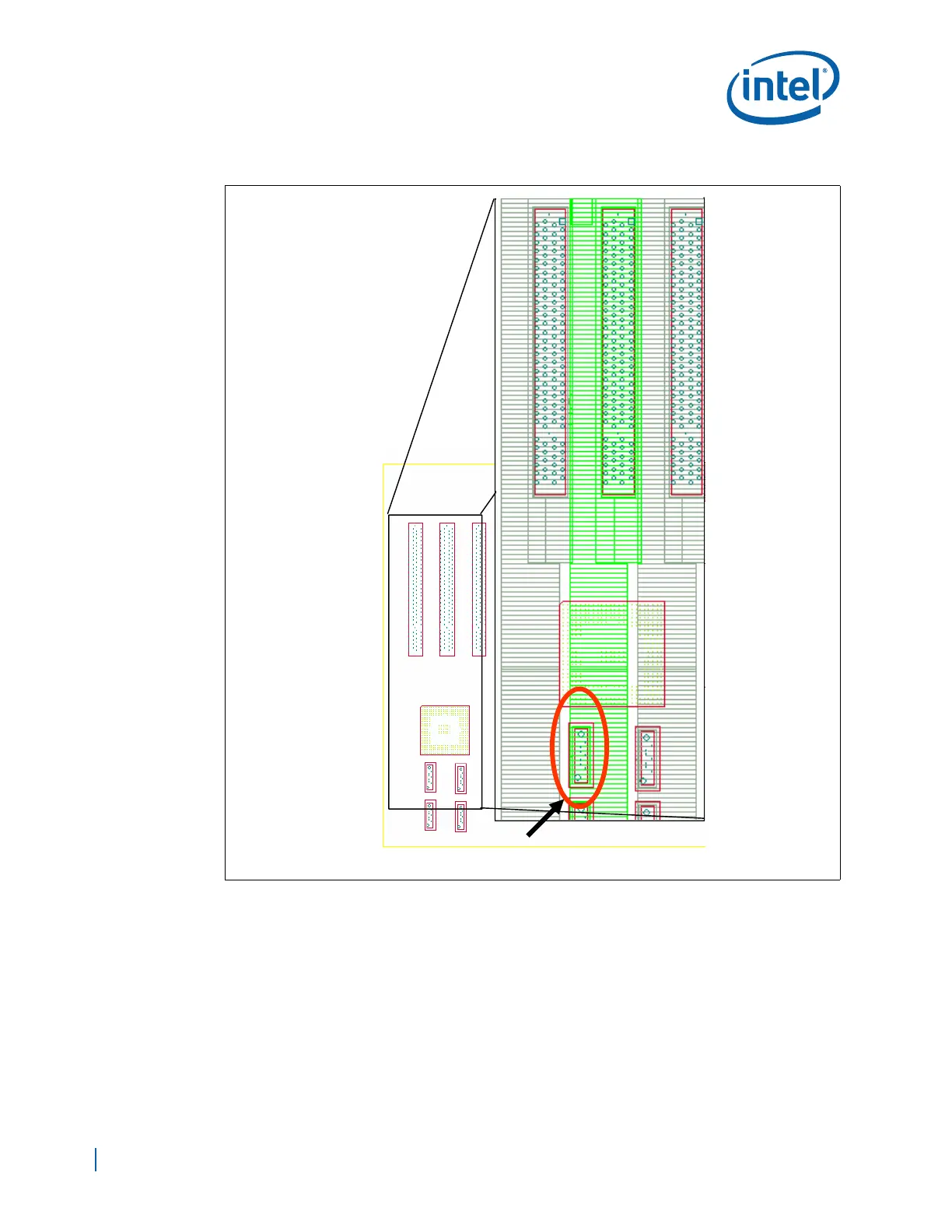

Figure 106. SATA Host Connector Placement ATX Area B
Place connector at left of card
boundar
To Next Page
