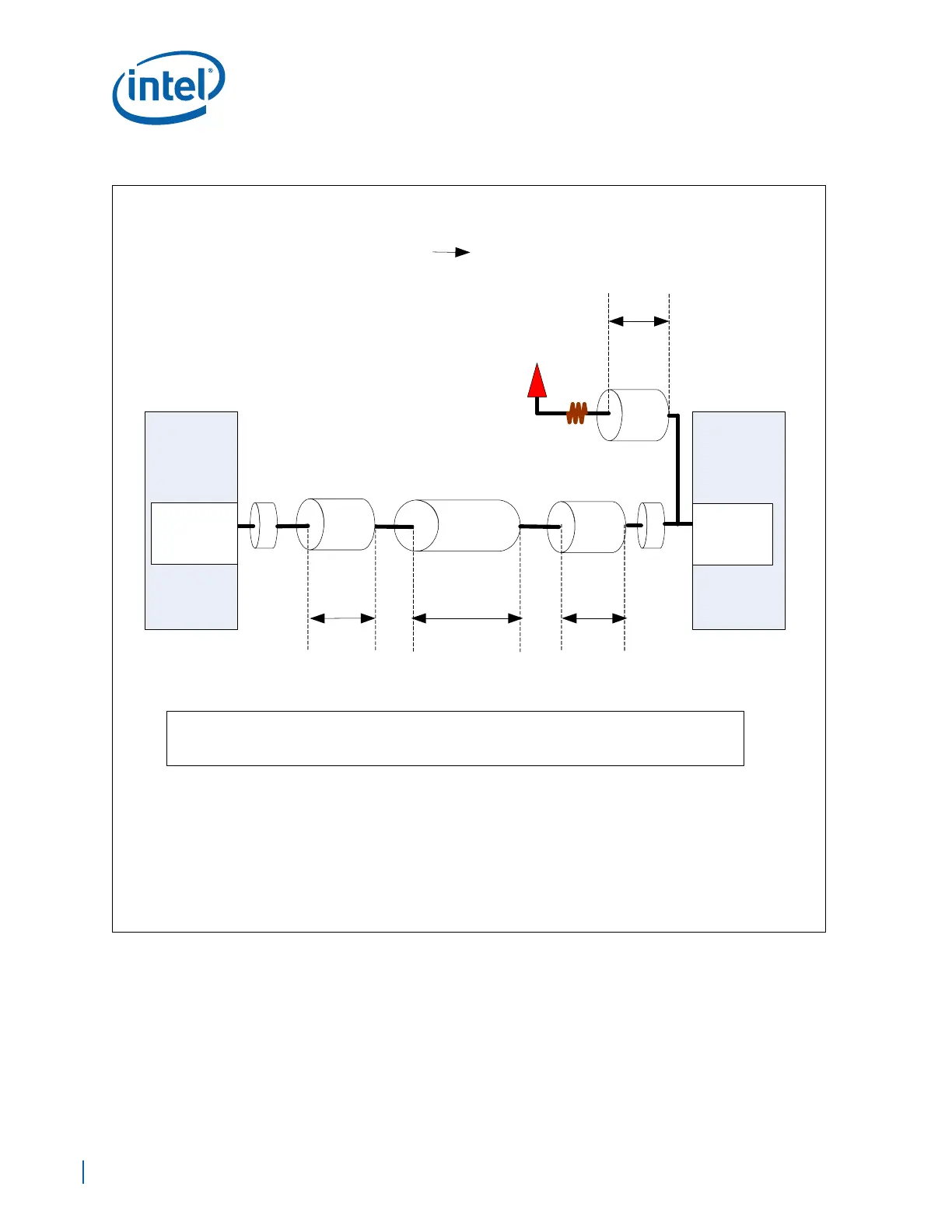

Figure 139. GbE RGMII Transmit Path Data\Control Topology
Pull_Up
TL (μs)
V2P5
Via
Break out
Break in Board
Transmitter
(Data\Ctrl)
PHY
EP80579
Rpull_up
LD\C_Brk_out_tx LD\C_Brd_route_tx LD\C_Brk_in_tx
L
Pull_up
LD\C_Brk_out_tx + LD\C_Brd_route_tx +
LD\C_Brk_in_tx
LD\C_Total_tx =
NOTE: Breakout\ Breakin descriptions are as follows:
1. Routing where trace is 3.75 mil wide and 4mil spacing is implemented to escape\ enter BGA
2. The Breakout \ Breakin Length is defined from the pin of the BGA, to where 4 mil spacing
increases to the required spacing per SI recommendations.
a). Data\Ctrl = 12 mil edge-to-edge (e2e) for Stripline
b). Data\Ctrl = 18 mil edge-to-edge (e2e) for Microstrip
Receiver
(Data\Ctrl)
Via
RGMII Transmit Path Data\Control Topology
(EP80579 PHY)
