EP80579 Integrated Processor Product Line May 2010
Order Number: 320068-005US 175
Universal Serial Bus (USB) Interface—Intel
®
EP80579 Integrated Processor Product Line
Intel highly recommends that the fuse element (thermistor) for the front panel header
be included on the motherboard to protect the motherboard from damage, for the
following reasons:
• protects the motherboard from damage in the case where an un-fused front panel
cable solution is used.
• provides protection from damage if an un-keyed cable is inadvertently plugged
onto the front panel USB connector.
• provides protection to the motherboard in the case where the front panel cable is
cut or damaged during assembly or manufacturing resulting in a short between
Vbus and ground.

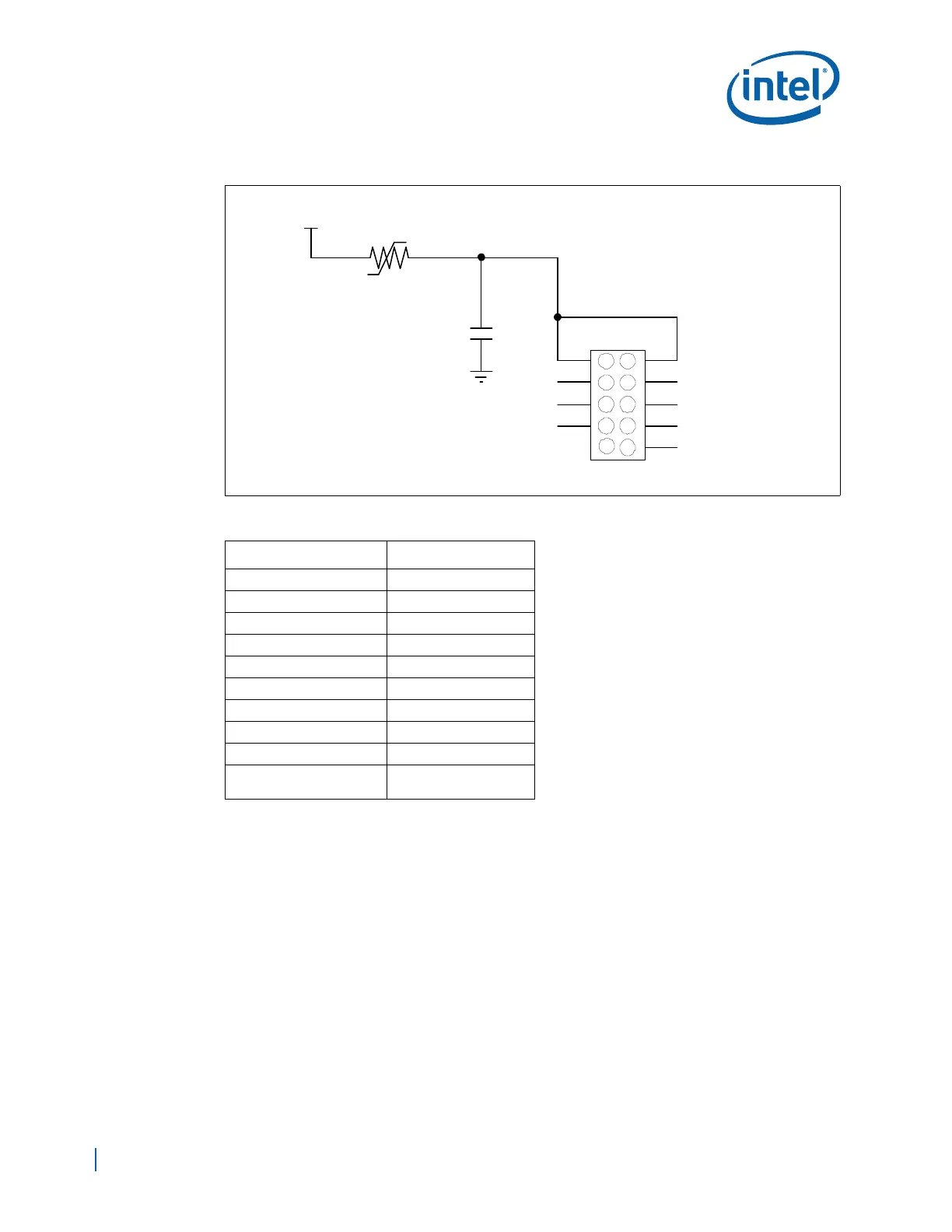

Figure 117. Front Panel Header Schematic
Table 66. Front Panel Header Pin-Out
Pin Description
1Vbus
2Vbus
3DM1
4DM2
5DP1
6DP2
7Vss
8Vss
9KEY
10
No connect or over-
current sense
KEY
3
8
6
4
2
7
5
1
910
NC or Overcurrent
Vss Vss
USBN1
USBP2
USBN2
USBP1
VCC
Vbus
THRMSTR ≥ 1.5 A
for Two Ports
Cbypass ≥ 120 μF
Per Hub
