EP80579 Integrated Processor Product Line—System Memory Interface (SODIMM)

Intel

EP80579 Integrated Processor Product Line

Platform Design Guide May 2010

326 Order Number: 320068-005US

Table A-9. Read Operation ODT Table

SODIMM

Module

Write

Target

Controller

Configuration

SODIMM

Configuration

Rank0 Rank1

1-Rank (SR) Rank0 120 Ω ODT Off n/a

2-Rank (DR) Rank0 120 Ω ODT Off 150 Ω

2-Rank (DR) Rank1 120 Ω 150 Ω ODT Off

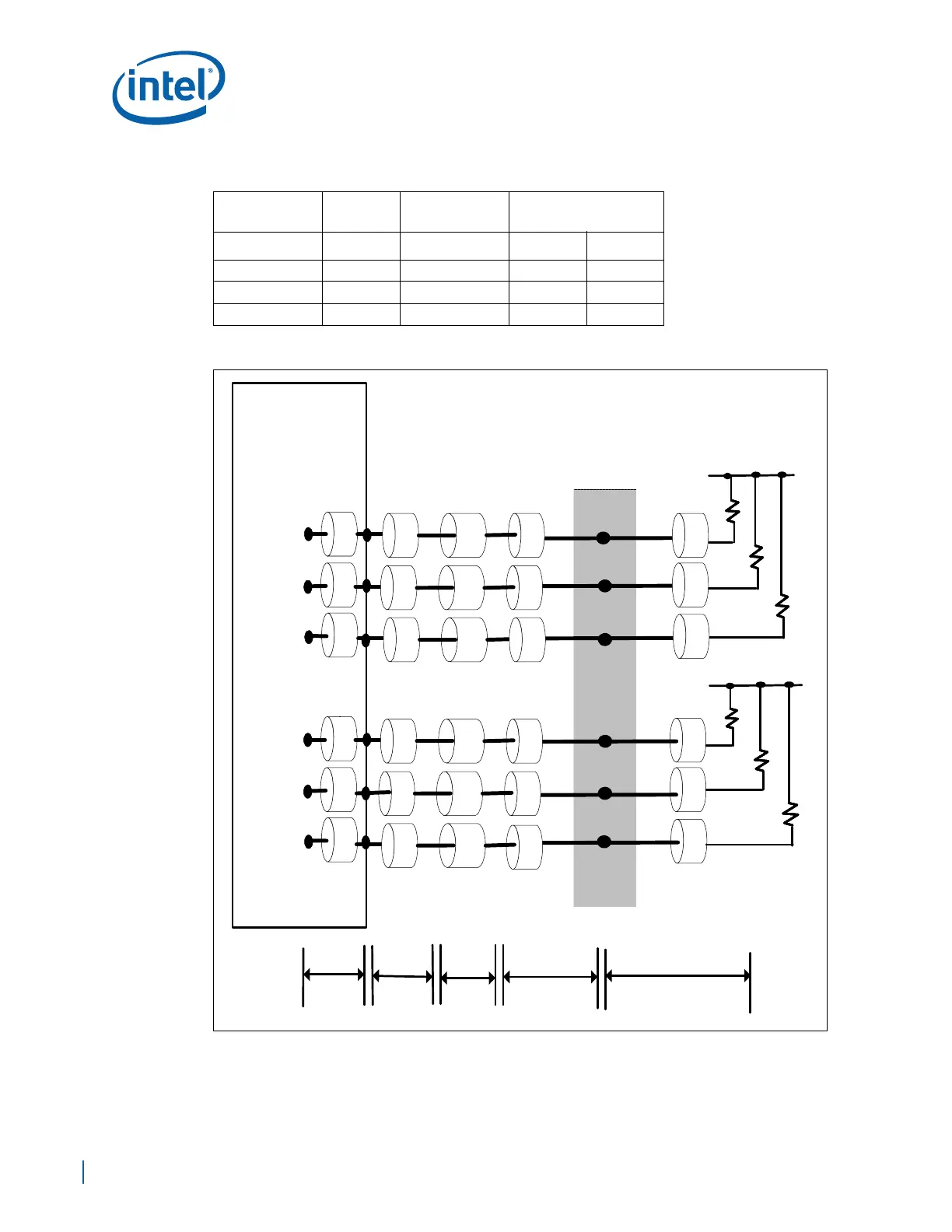

Figure A-4. DDR2 Control Signals- Implementation

EP80579

ODT0

Package

Trace

Breakout

Routing

CKE0

CS0#

CKE1

CS1#

ODT1

SODIMM

BRKOUT

ROUTE

PKG

TERM

VTT_DDR

Rtt

VTT_DDR

Rtt

Board

Routing

Breakin

Routing

BRKIN
