Field of View (FoV)
The instrument has a rotating Scanhead and a rotating mirror that covers a 360° x 270° field of
view (FoV).

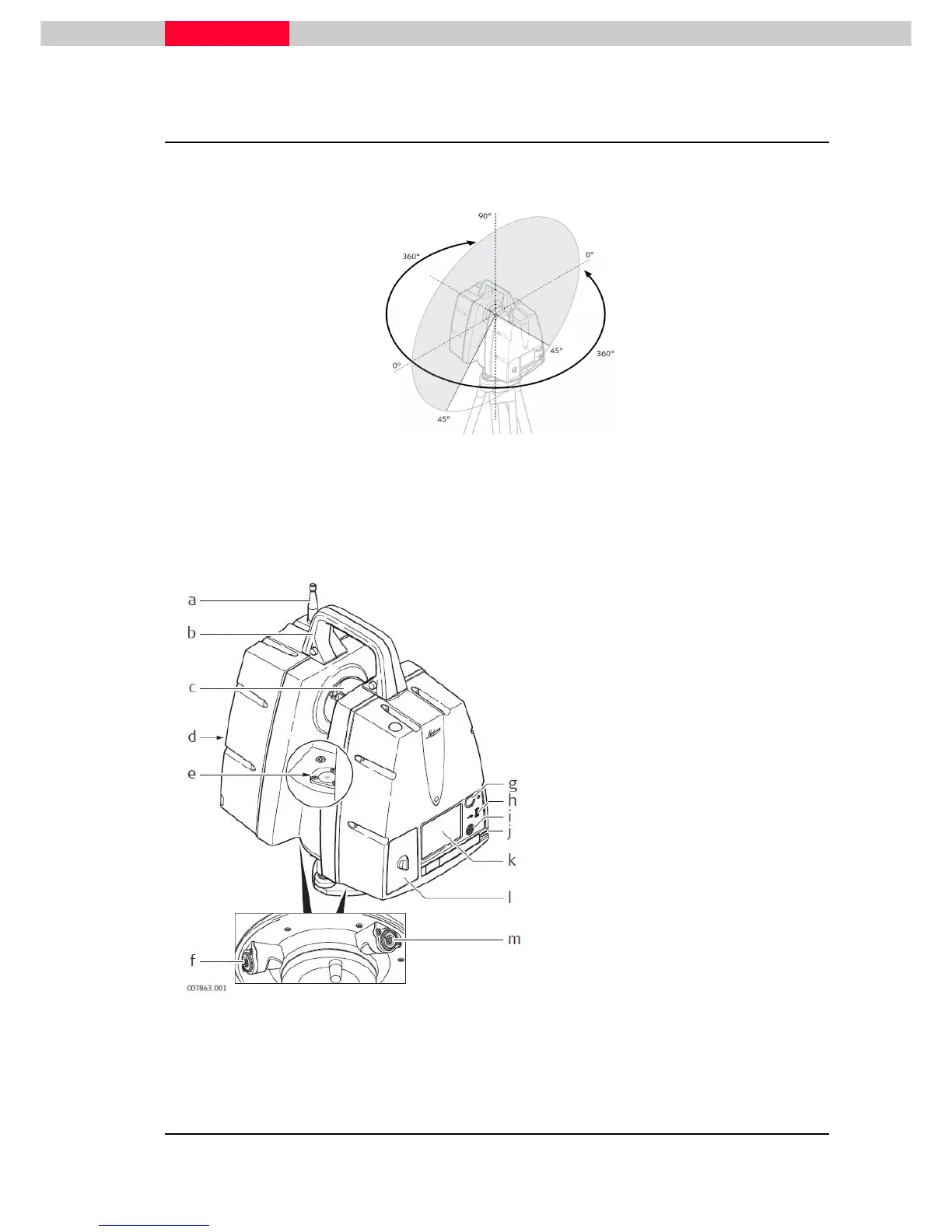

Figure 3
Scanhead Components
Figure 4
a) Antenna
b) Removable handle
c) Rotating mirror (laser and camera aperture)
d) Battery compartment B
e) Circular level
f) Socket for power supply,
g) 5 pin female with blue colour ring
h) ON/OFF button
i) USB socket
j)
Loudspeaker
k) Stylus
l) Touchscreen
m) Battery compartment A
n) Ethernet socket, 8 pin female with grey
colour ring
