5 - 12
2.1 Export a point cloud as ASCII File Format (*.txt)
When the “Text – All ASCII Files” format is selected from the file export format list and the
export options are set to
Point Cloud
in the
Export Options
dialog the following
Export: ASCII File
Format
dialog is coming up.

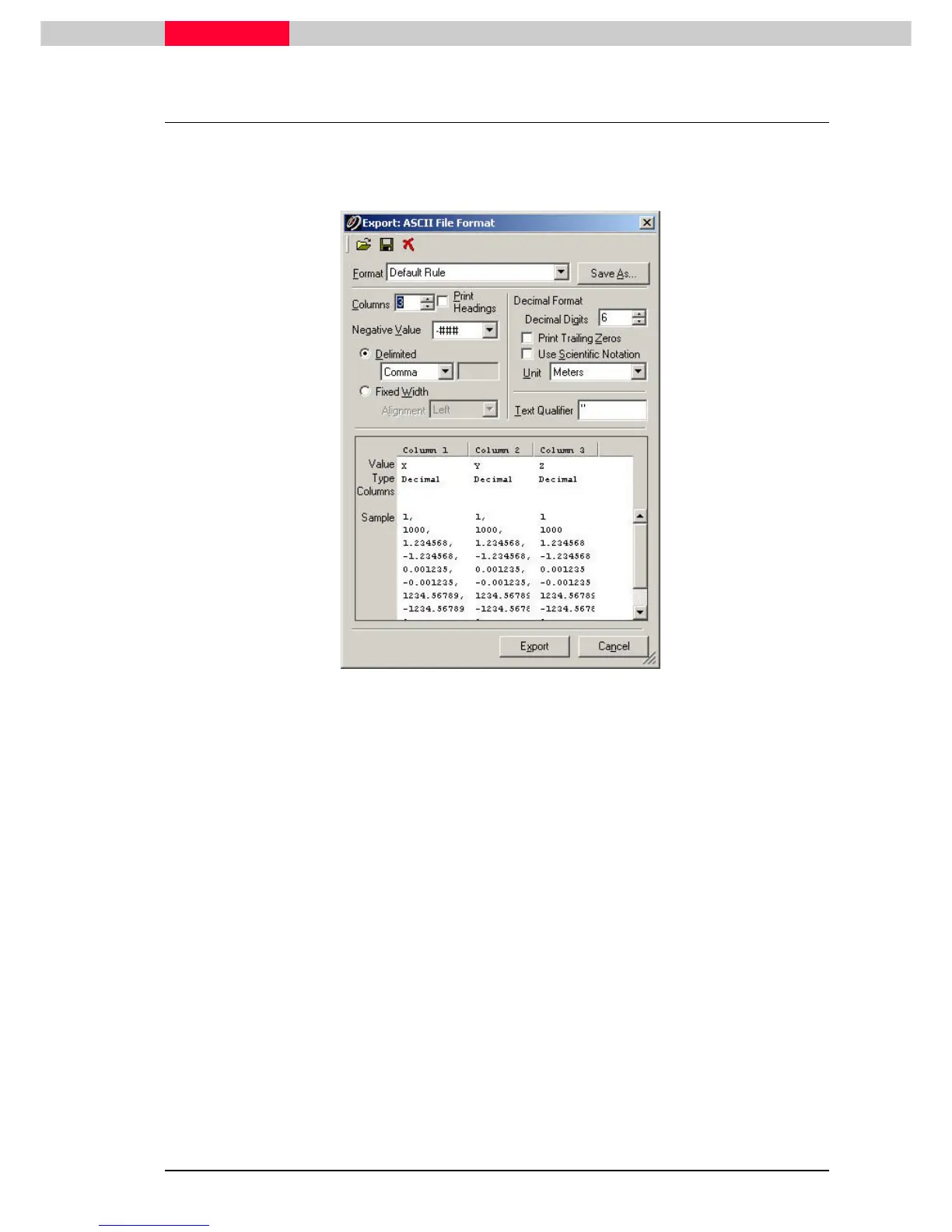

Figure 6
From this dialog the export format of the ASCII file can be manipulated. The settings can be
stored under a user defined name and be used again for the next export operation.
Intensity and RGB information are not supported with this format.
