Module 1.0
-
Scanning with ScanStation
P30
Scanner & Scanning Features
Detail Scan
The detail scan can be accessed using the tab
Detail Scan
or
In every camera window using
• Detail scan
Here you can define the resolution for the detail scan fence.
 It is possible to define many detail scans
with different resolution in a list.

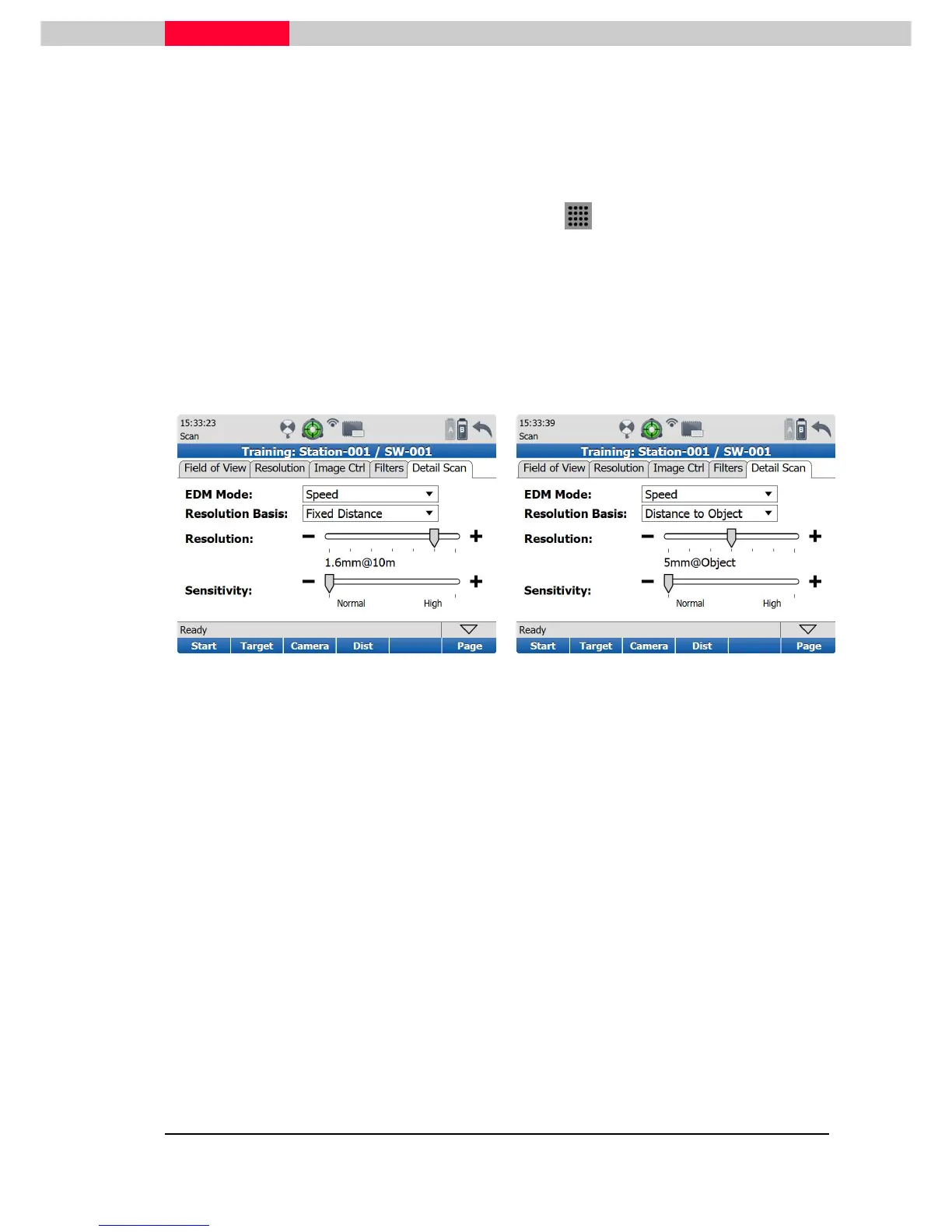

Figure 43 Figure 44
Fixed Distance:
The scan resolution is based at the distance of 10m.
Figure 43 is showing 1,6mm resolution (point spacing) at 10m distance.
Distance to Object:
The scan resolution is based at the distance to the object center.
Figure 44 is showing 5mm resolution (point spacing) at the object, distance independently.
 From the Detail Scan Tab the scan can be started
like in the Field of View Tab.
