12 - 34 Module 4.0 – Point cloud Modifying
Organization/Visualization point clouds
By default each object is displayed with LOD – Full Range. This means just enough rendering
(also based on distance) to allow the user to see what the object is. Notice how the surface of
the pole is not perfectly round. And if zooming out it will at some point actually become square,
taking in the level of detail a user needs at a certain range.

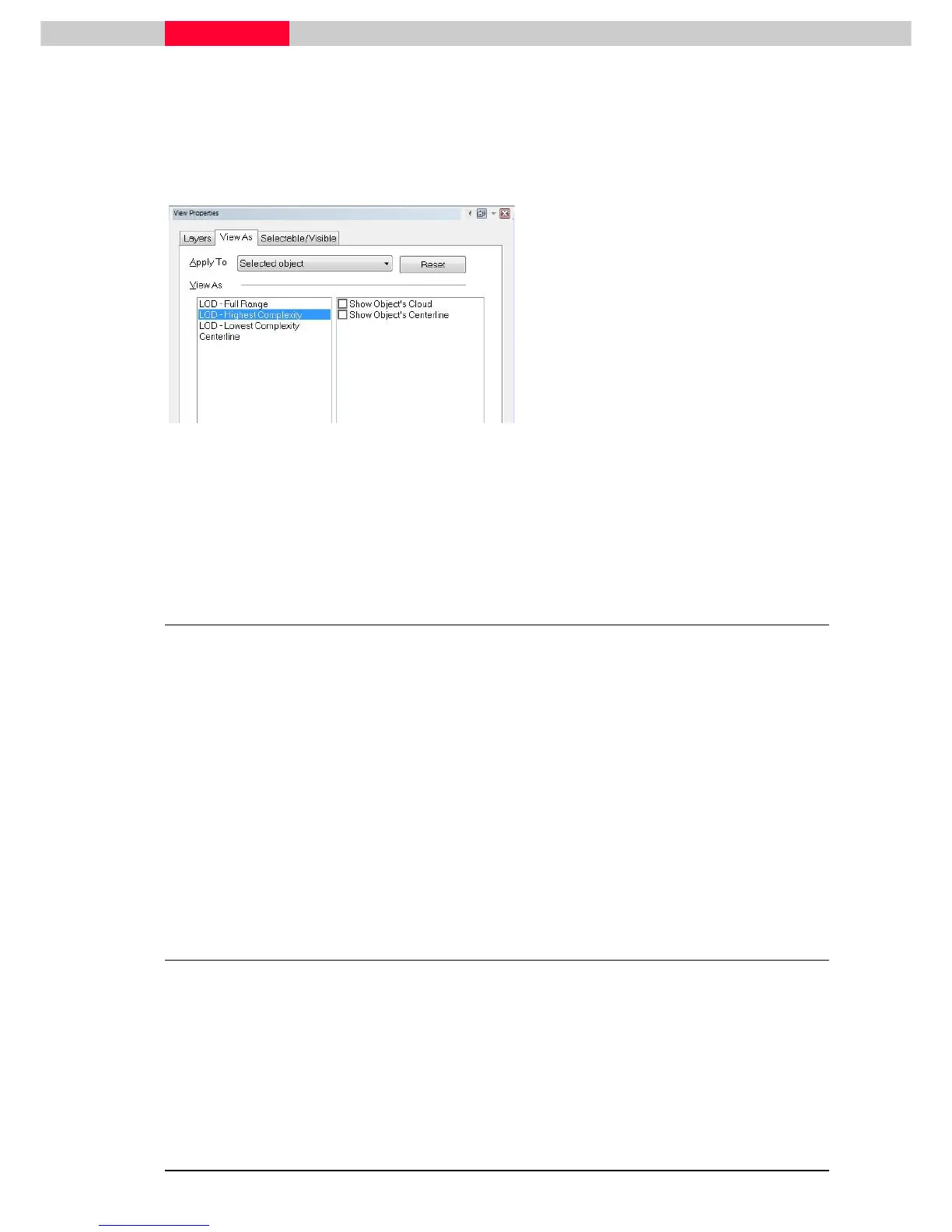

Figure 18
• Change
ChangeChange
Change to the View As Tab
• Make sure that the Apply
Apply Apply
Apply to
toto
to field is set
to “Selected object”
 The choices listed under
View As depend on the
object selected.
• Highlight
HighlightHighlight
Highlight the line “LOD – Highest
Complexity”
Click the button Apply
ApplyApply
Apply
The cylinder now has a smooth surface
displayed which will always be
maintained.
 Do not by default switch all objects to Highest Complexity as this will impact
system performance.
3 Unify a Point Cloud / ModelSpace
In a ModelSpace containing a registered set of scans and a large number of point clouds,
performance is improved by the cloud unification process.
When running a unification process all point clouds will be combined into one single efficient
point cloud object.
During this process a point reduction with a selectable average point distance over the whole
point cloud can be done.
The Unify command always concerns only the ModelSpace selected. A new copy containing all
individual scans can always be re-created via creating a new ModelSpace.
 Depending on the size of the database, the unify process can take a long time
and requires 6x the size of the database of free space on the computer’s hard
disk.
3.1 Unify clouds from ModelSpace window
• Add
Add Add
Add the Bishop Drive – San Ramon.imp database to your Cyclone Navigator.
• Open
OpenOpen
Open the ModelSpace View from ModelSpace Intersection in ScanWorld (Registration 1).
• Make sure Layer Default is visible
Layer Default is visibleLayer Default is visible
Layer Default is visible in View Properties Window.
• Use the Viewpoint | Standard Viewpoints | Top
Viewpoint | Standard Viewpoints | TopViewpoint | Standard Viewpoints | Top
Viewpoint | Standard Viewpoints | Top command to make sure all points to unify are
loaded into Cyclone.
• Click Tools | Unify Clouds…
Tools | Unify Clouds…Tools | Unify Clouds…
Tools | Unify Clouds… to start the unification process.
