24
-
52
Module
3.1
–
Applied Registra
t
ion
Registration

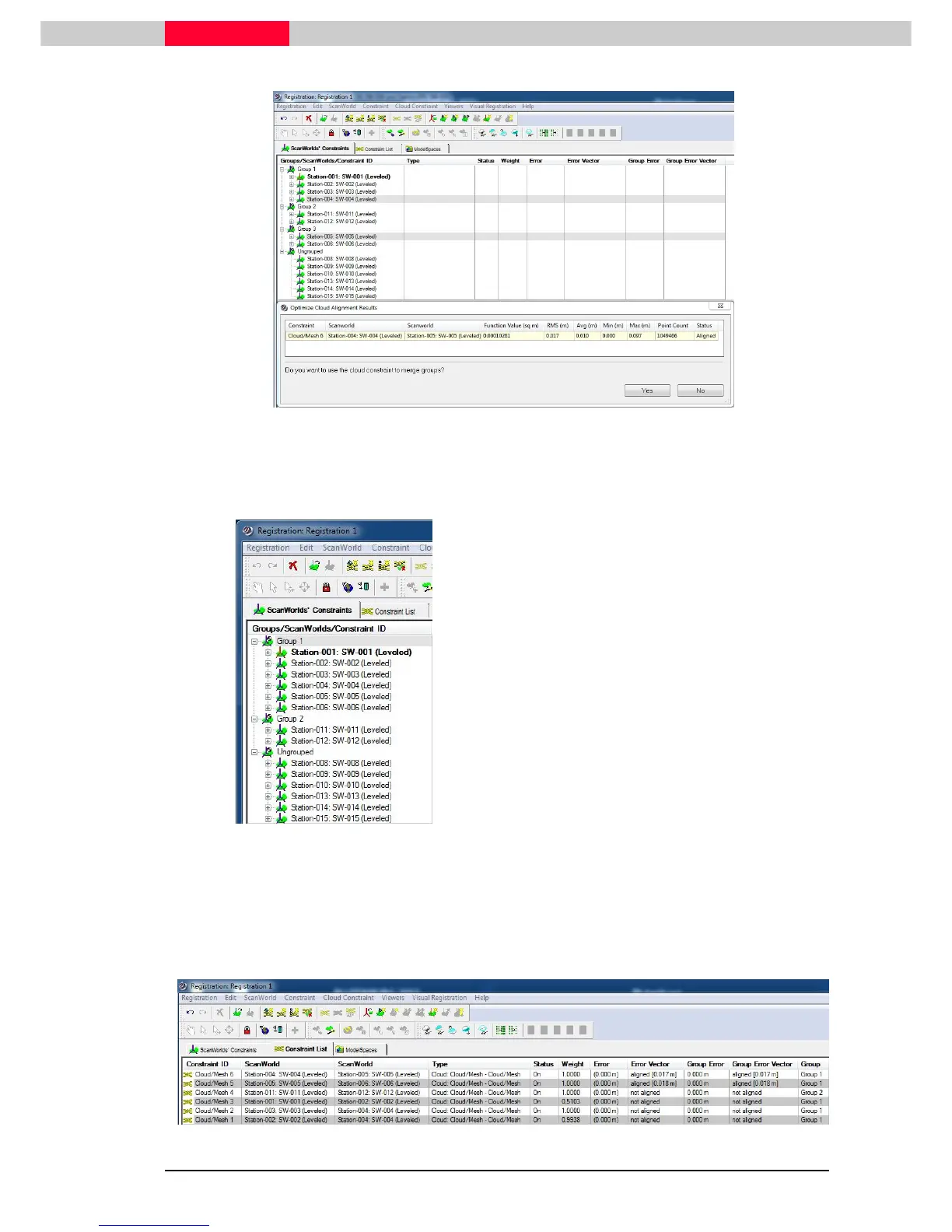

Figure 35
•
Do you want to use the cloud constraint to merge groups?
• Press
Yes.
Figure 36
• ScanWorlds 5 and 6 are now merged into
Group 1
.
•
Close
the
Visual Alignment
Window.
 If the RMS and/or point count values are not satisfactory – the visual alignment
can simply be repeated. It will then overwrite the existing constraint.
•
Open
the
Constraint List
tab from the Registration window to review the new
constraint between ScanWord 4 and 5 (
Cloud/ Mesh 6
).
Figure 37
