4 - 10 Module 4.2 – Cyclone Keyplan Organization/Visualization Pointcloud

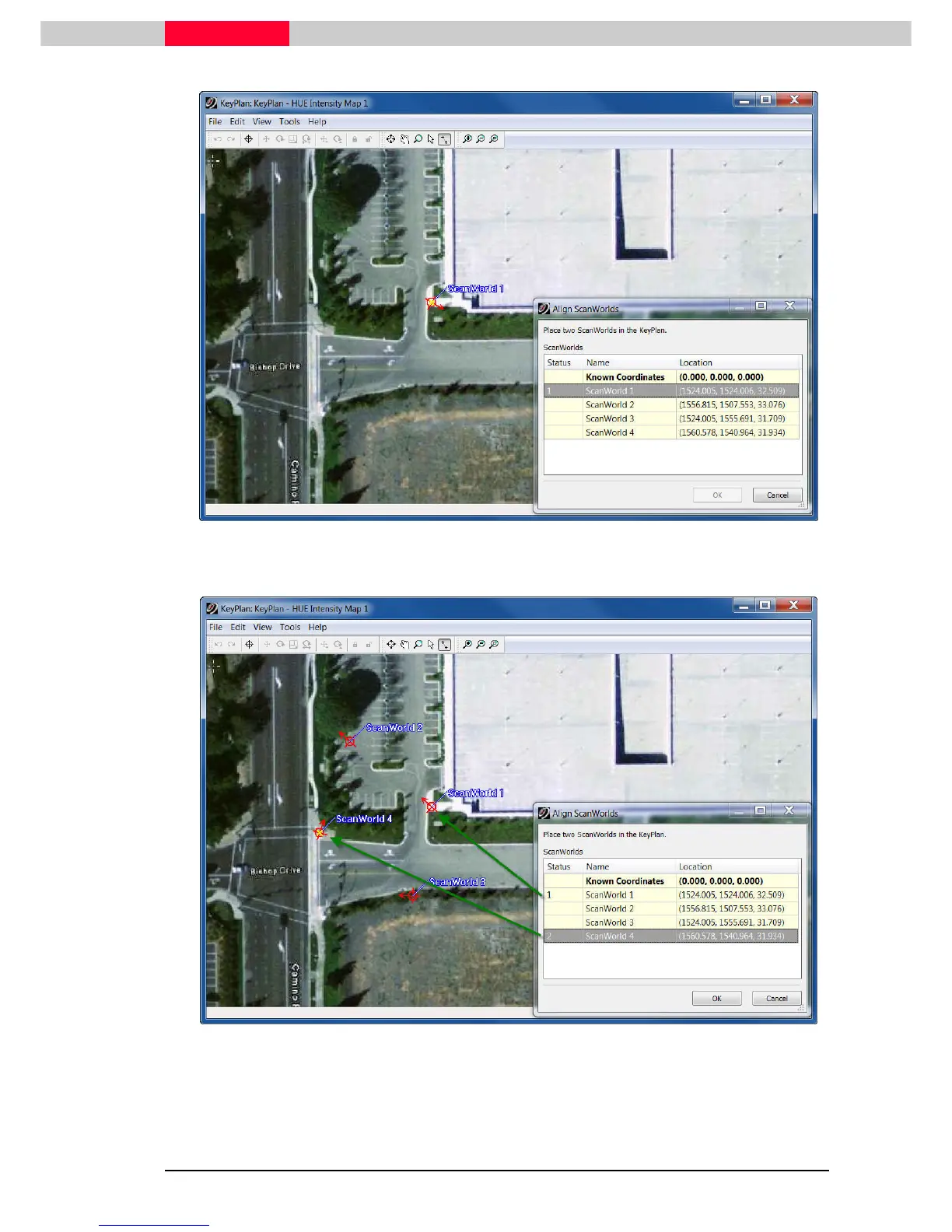

Figure 3
Then pick on the image to choose the location of the first ScanWorld (Figure 3).
Figure 4
Select the next ScanWorld to align and pick on the image. After picking, the rest of the
ScanWorlds will show up on the image. Then click OK
OKOK
OK (Figure 4).
