25 - 28
Figure 29
•

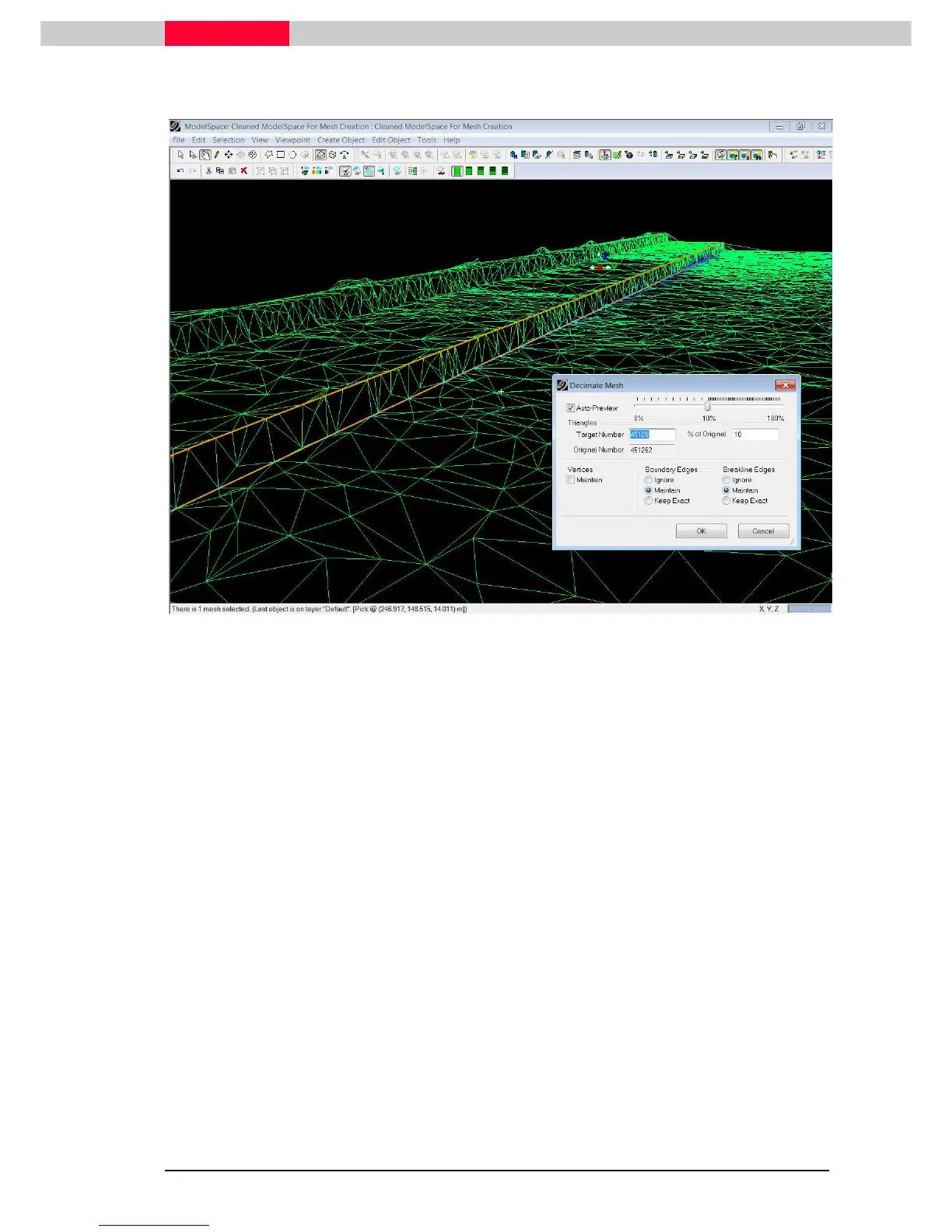

Continue to reduce the number of triangles down to 1% using the interactive slider. (Ensure
“Auto-Preview” is checked)
•
Experience the effects when boundary edges and breaklines are set
Ignore
•
In the end, decimate the mesh to 1% of the original, maintaining the boundary edges and
breaklines. (Figure 30).
This mesh object is now more manageable for export via coe, dxf or msh to other CAD packages.
