28 - 28 Module 5.2 - Mesh Data Extraction
•
Place the new regular mesh onto a new layer and then switch off the original one on layer
Default
to view this one only (Figure 32).

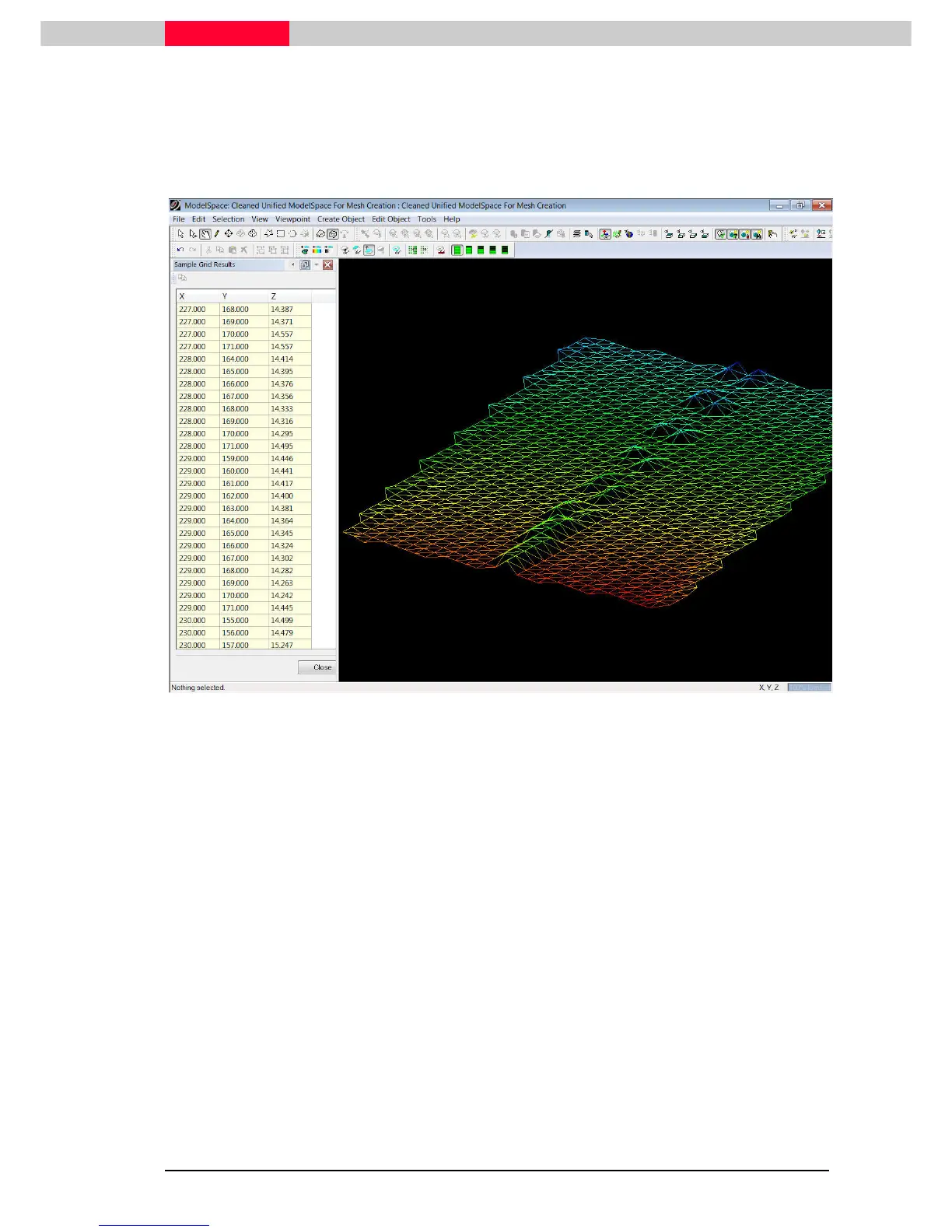

Figure 32
Notice how the orientation of the triangles is slightly slanted. This is due to the
pattern being derived from the active reference Plane which in this case is based
on the current coordinate system. To orient the pattern along the road, first
correctly orient the Reference Plane.
Meshes can now be exported via coe, dxf or msh format.
