8-62 Phaser 6300/6350 Color Laser Printer Service Manual
11. Unplug connectors (P/J13 and P/J22) from the Engine Control Board and remove
the harnesses from the Front Harness Guide.
Note
If removing the Chute Assembly In, also unplug connectors (P/J36 and P/J52)
and remove these harnesses from the Front Harness Guide.
Engine Control Board Bracket

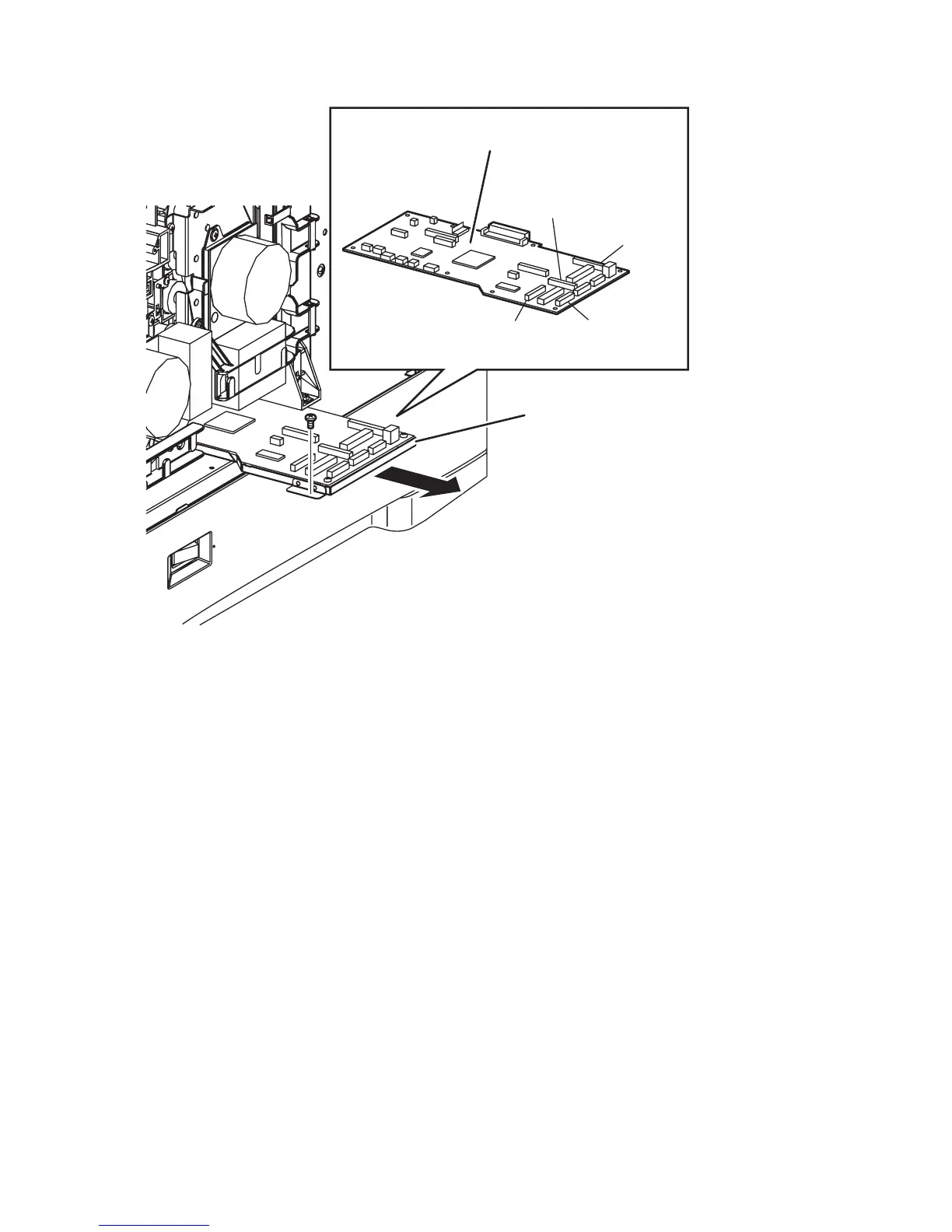

s6300-347
P/J13
P/J22
P/J52
P/J36
Engine Control Board
