Service Parts Disassembly 8-63

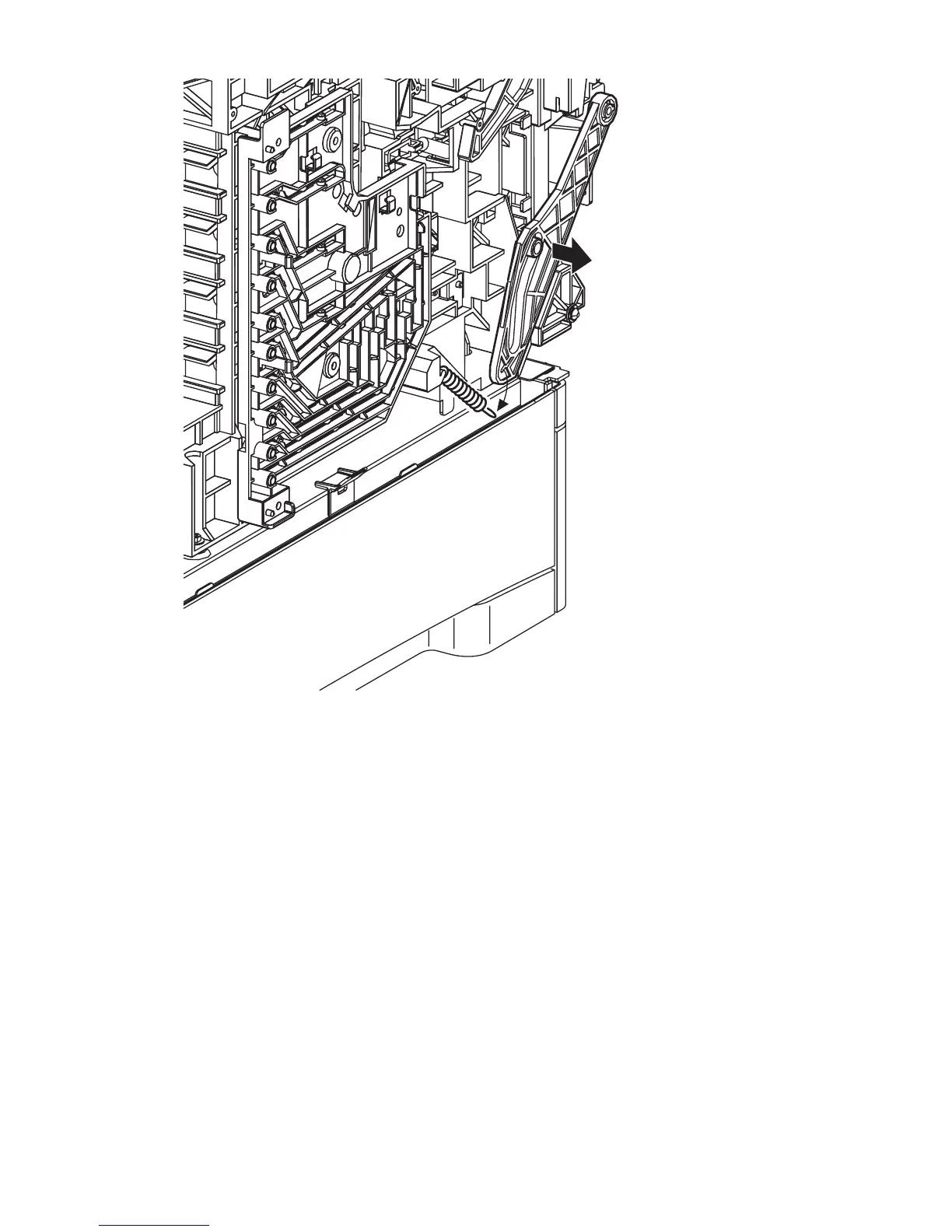

12. Remove the Link Spring from the left side of the printer.
15. Remove the boss from the hole of the center of the Link on the left side of the
printer.
16. Release the hook that fixes the Stopper strap and remove the Stopper.
s6300-176
