Theory of Operation 2-27
Main Drive Assembly

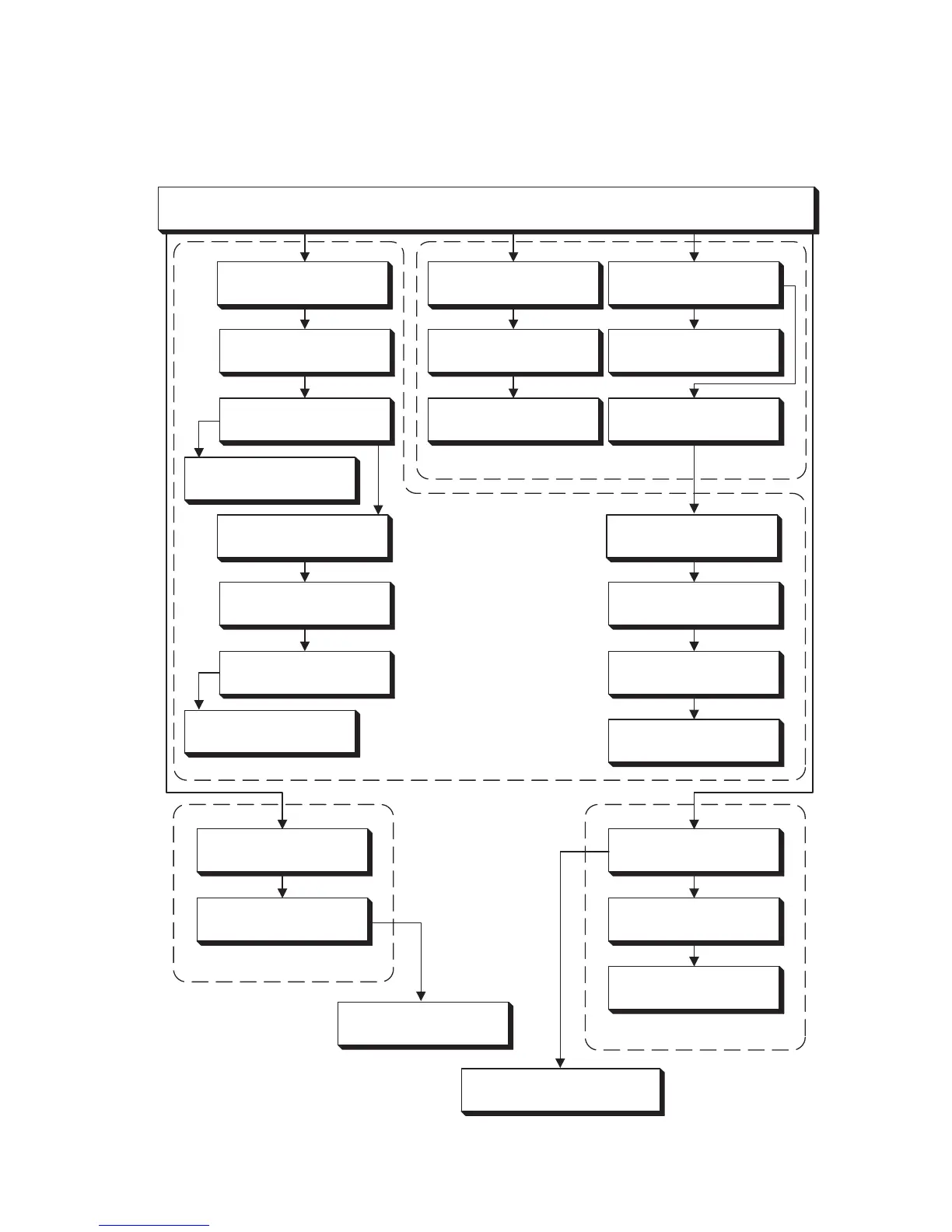

The Main Drive Motor drives the Imaging Unit, Transfer Roller, Registration Chute,
and paper feed. The following figure diagrams the relationship of the Main Drive
Motor, the gear set, and printer functions.
Main Drive Assembly
Gear Idler In
Registration Chute Assembly
Paper Feeder
Registration Clutch
Feed Roller Assembly
Turn Clutch
s6300-044
Imaging Unit
IDT2
Rubber Regi Roller
Gear Idler Feed Tray 1(MPT) Turn Roller
Metal Regi RollerGear Feed 2
Gear Feed H2
Feed Roller Assembly
Transfer Roller
Retard Roller
Gear Feed H1
Gear Feed 2
Gear Idler Turn
Gear Turn
Turn Roller Assembly
Roller Assembly
IDT1 (2)
Drum (4)
Gear P1
Chute Assembly Out
Gear (MPT)
Feed Roller Assembly
To Next Page
