2-28 Phaser 6300/6350 Color Laser Printer Service Manual

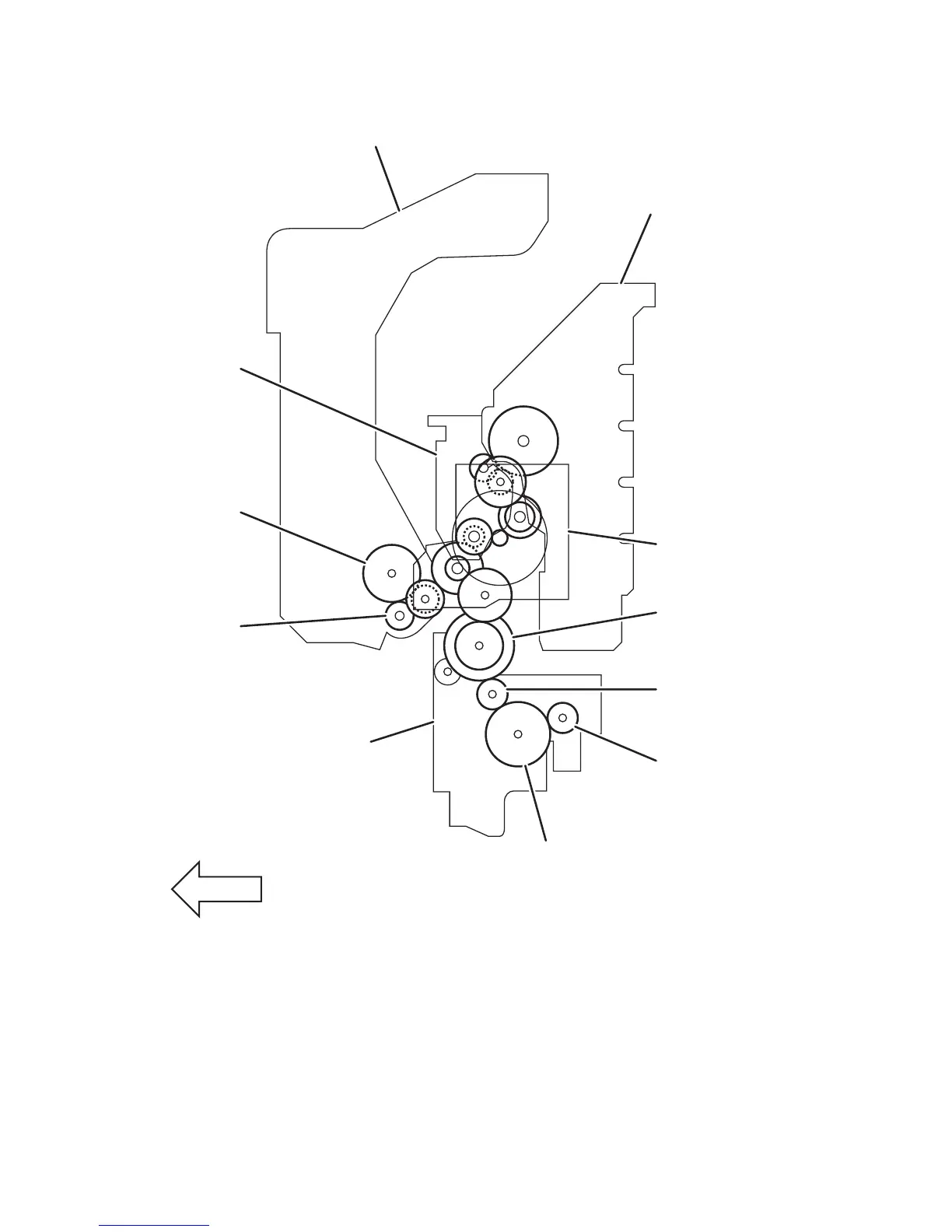

The figure below shows the location of the various components driven by the Main
Drive Assembly.
A number of other motors are used to drive rollers, move paper, and supply toner.
These motors are described in detail in subsequent sections that highlight printer
function in more detail.
s6300-049
Chute Assembly Out
Imaging Unit
Gear Idler In
Main Drive
Assembly
Gear Idler Feed
/ Gear Feed 2
Gear Feed 2
Gear Feed H2
/ Gear Feed H1
Transfer Roller
Tray 1 Gear
Paper Pick Assembly
Front
Retard Roller
