Caution -
To connect a FANU to the FANBPU, push the FANU at two places at the
bottom at the front (A in Figure 14-8). Pushing the latch of the FANU or the meshed
section in front may cause a connector connection problem or the contact of the
meshed section
with the cooling fans inside, resulting in the FANU malfunctioning.
Lock

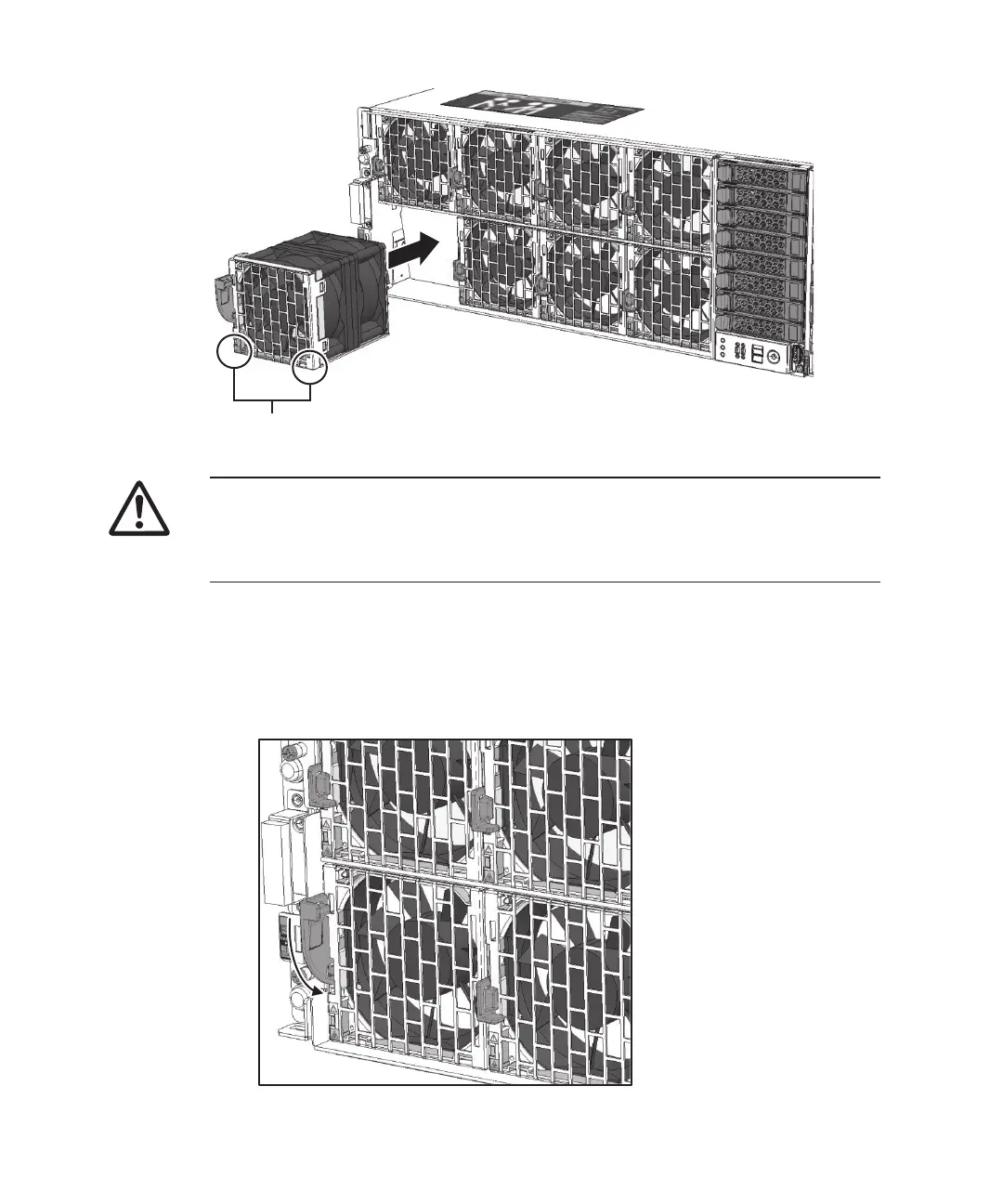

Figure 14-8
Inserting a FANU
2.
Secure the FANU.
Insert the FANU into the FANBPU and fold back the latch of the FANU to
secure the FANU. (Figure 14-9)
Figure 14-9
Securing a FANU
3.
Incorporate the FANU into the system.
