A
Caution
-
When
removing
either
the
CMUL
or
CMUU
or
both,
be
sure
to
bundle
the
PCIe
cables
using
the
cable
clamps.
Removing
the
CMU
without
bundling
PCIe
cables
may
damage
the
cables
due
to
interference
with
the
internal
components.

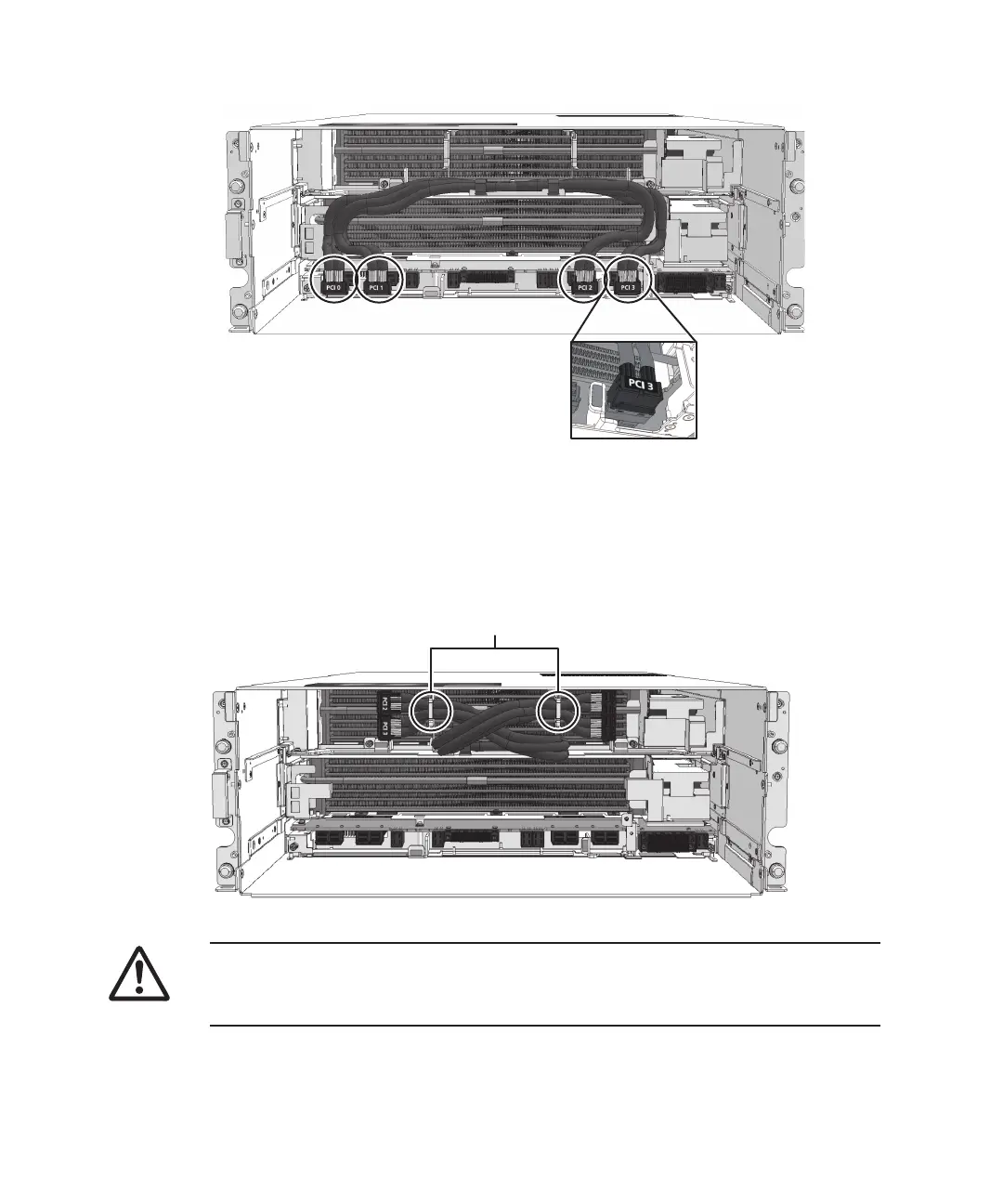

Figure
17-9
　　
Removing
the
PCIe
Cable
Connectors
3.
Bundle
the
PCIe
cables
using
the
cable
clamps
of
the
CMUU.
Bundle
the
PCI0
and
PCI1
cables
and
the
PCI2
and
PCI3
cables
into
pairs
respectively
using
the
cable
clamps
(A
in
Figure
17-10)
in
such
a
way
that
they
cross
each
other.
Figure
17-10
　　
Securing
the
PCIe
Cables
With
the
Cable
Clamp
4.
Loosen
the
fixing
screws
of
the
CMUU
levers.
Loosen
the
fixing
screws
(A
in
Figure
17-11)
of
the
CMUU
levers.
Note
that,
if
you
do
not
remove
the
CMUU,
this
step
is
not
necessary.
Proceed
to
Fujitsu
SPARC
M12-2/M12-2S
Service
Manual
