NEAR to END
Caution -
Check that the CMUL is fitted to the guide (C in Figure 17-23) in the server
before holding it by other parts. If the CMUL is not fitted to the guide, it may fall and
be damaged.
A
B B
If you have not removed the CMUL, proceed to step 3.

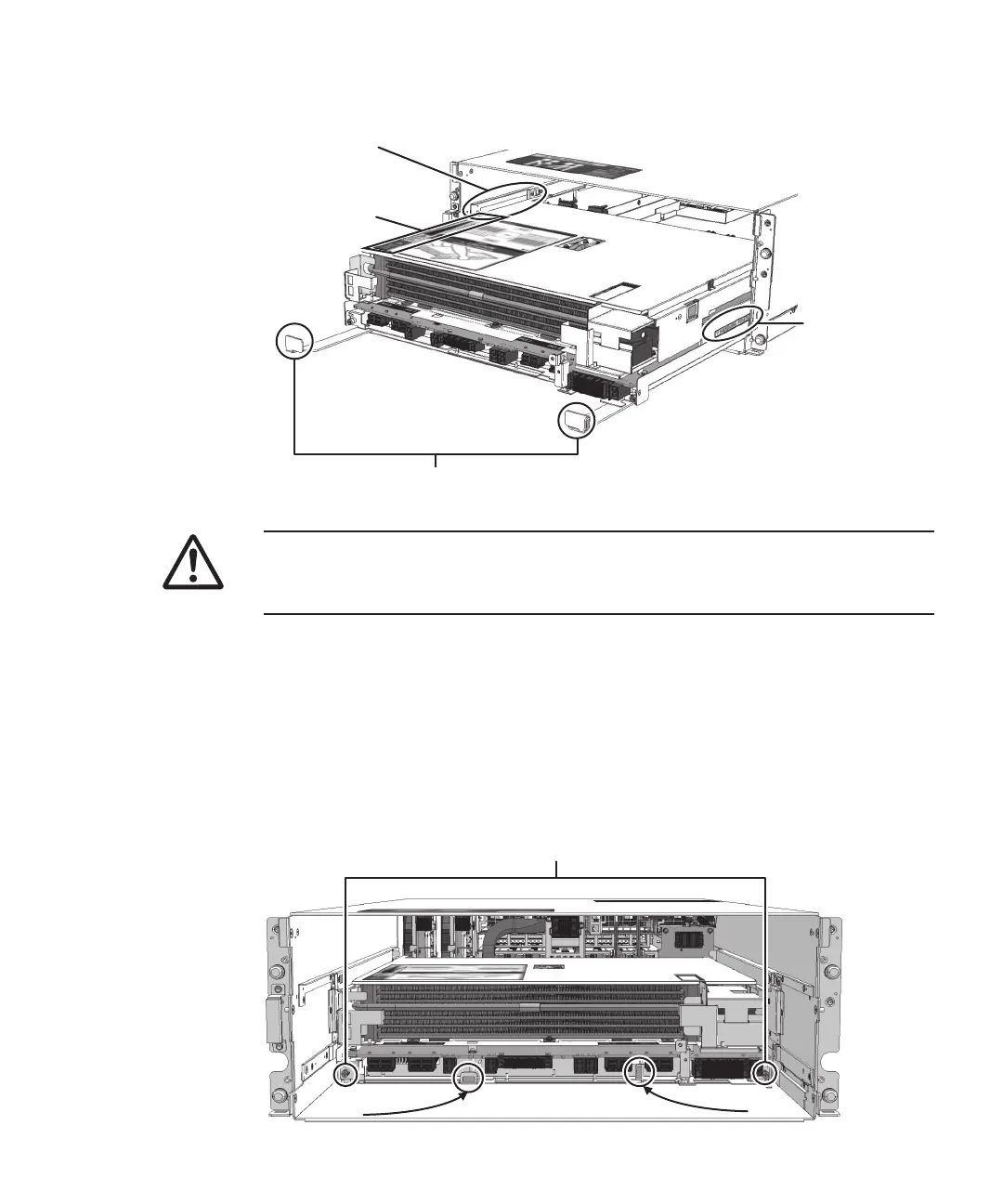

Figure 17-23
Inserting the CMUL
2.
Secure the CMUL.
Insert the CMUL slowly, with its levers open, until it sops inside the server.
When inserting the CMUL, push the flat part of each CMUL lever (B in Figure
17-24).
When the CMUL
stops inside the server, close the CMUL levers and tighten the
fixing screws (A in Figure 17-24) to secure the CMUL to the server.
Figure 17-24
Connector Connection of the CMUL and BPU
Chapter 17 Maintaining the CPU Memory Unit and Memory 453
