Hach sc200 User Manual

Wiring Connections
Read the following wiring considerations before making connections.
Top Connectors
Power Supply Terminals
• Rear connector
• 24 V Supply voltage
• 0V Reference supply voltage
• Earth to ground
RS232 Terminals
• Front connector
• TXD RS232 transmit signal
• RXD RS232 receive signal
• 0V RS232 0V reference

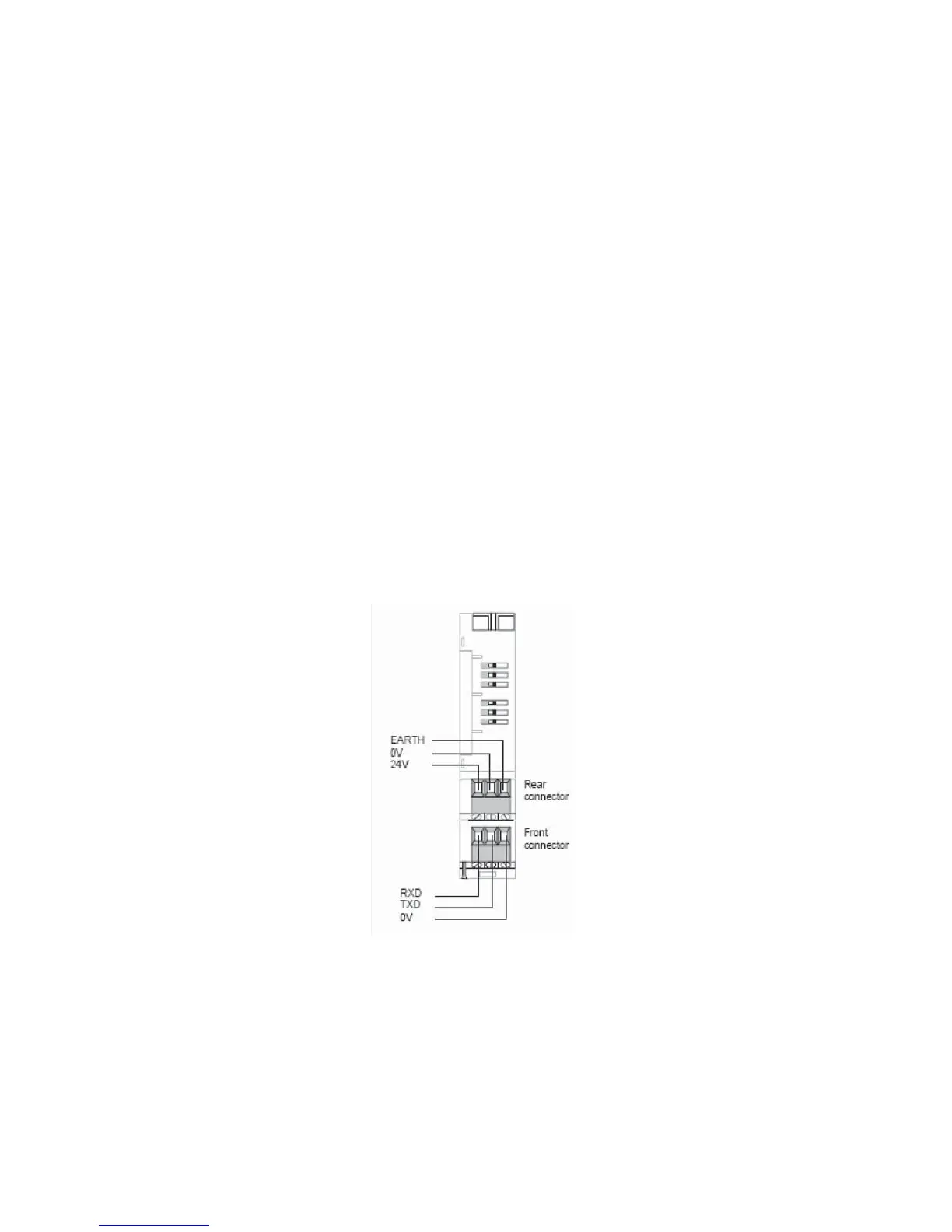

Figure 2-6. Top Connectors
2-6

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
