INSTALLATION
Eaton
®
9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality
26
Connecting the EBM(s)
To install the optional EBM(s) for a UPS:
1. On the bottom of the UPS right front cover, remove the EBM cable
knockout (see Figure 11).
NOTE Use care to protect the LCD control panel and the connected ribbon cable from
damage.
esc
Knockout for EBM Cable

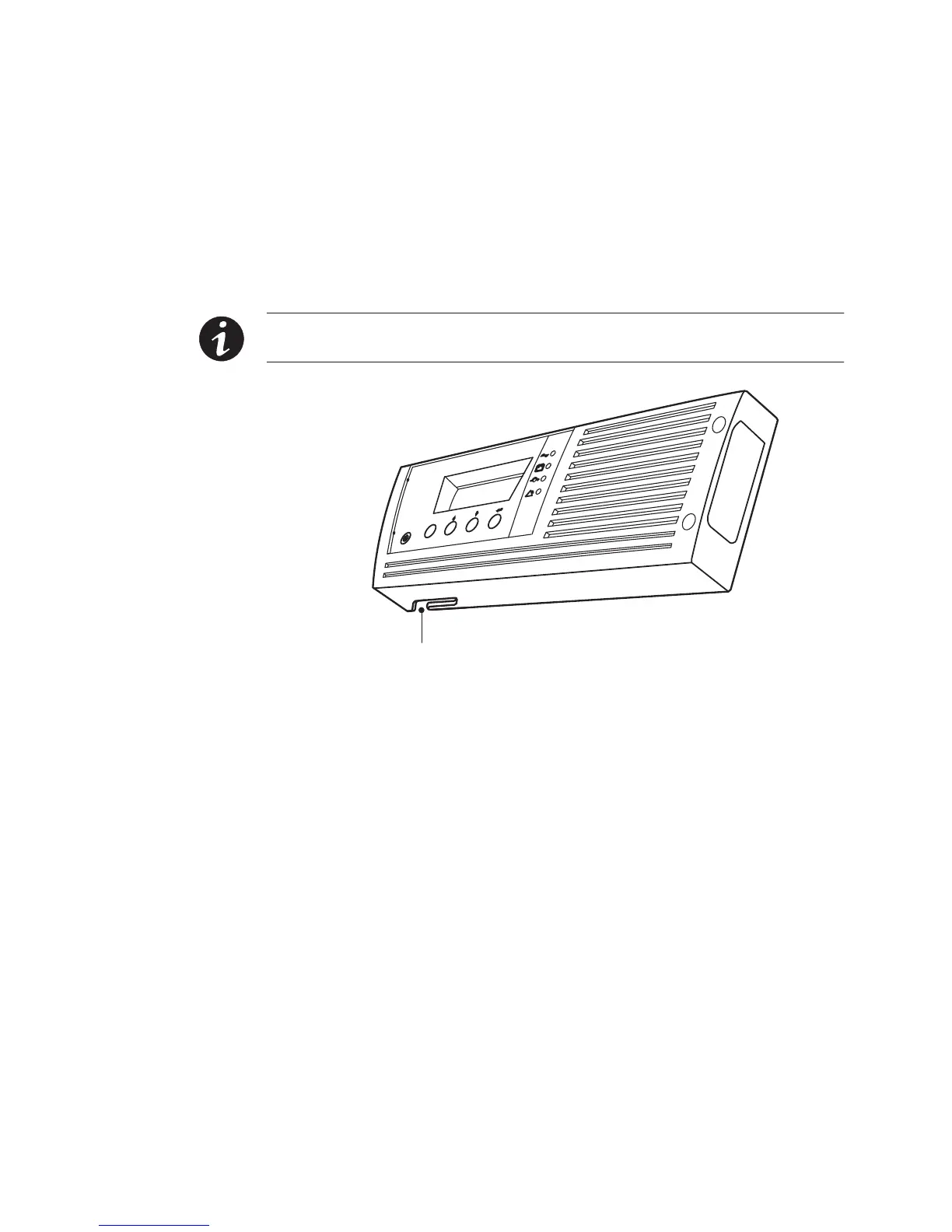

Figure 11. Removing the EBM Cable Knockout
2. Remove the front cover of each EBM (see Figure 12).
To remove the cover, remove and retain the two screws on the
right side of the cover. Grasp the sides of the cover and slide the
cover to the left and then away from the cabinet.
