• Pressing ESC- returns the user to the main menu screen and does
not change saved setpoints
• Pressing ENTER- advances to the screen for changing the
Set-point values.
• The screen will display Current Values for Unit # for Sensor 1
presets
• ENTER enables user to change presets.
NOTE: Do not use decimal points; the Decimal is fixed; therefore,
to enter 19.5:
• Press ENTER
• Type 19 and ENTER
• Type 5 and ENTER.

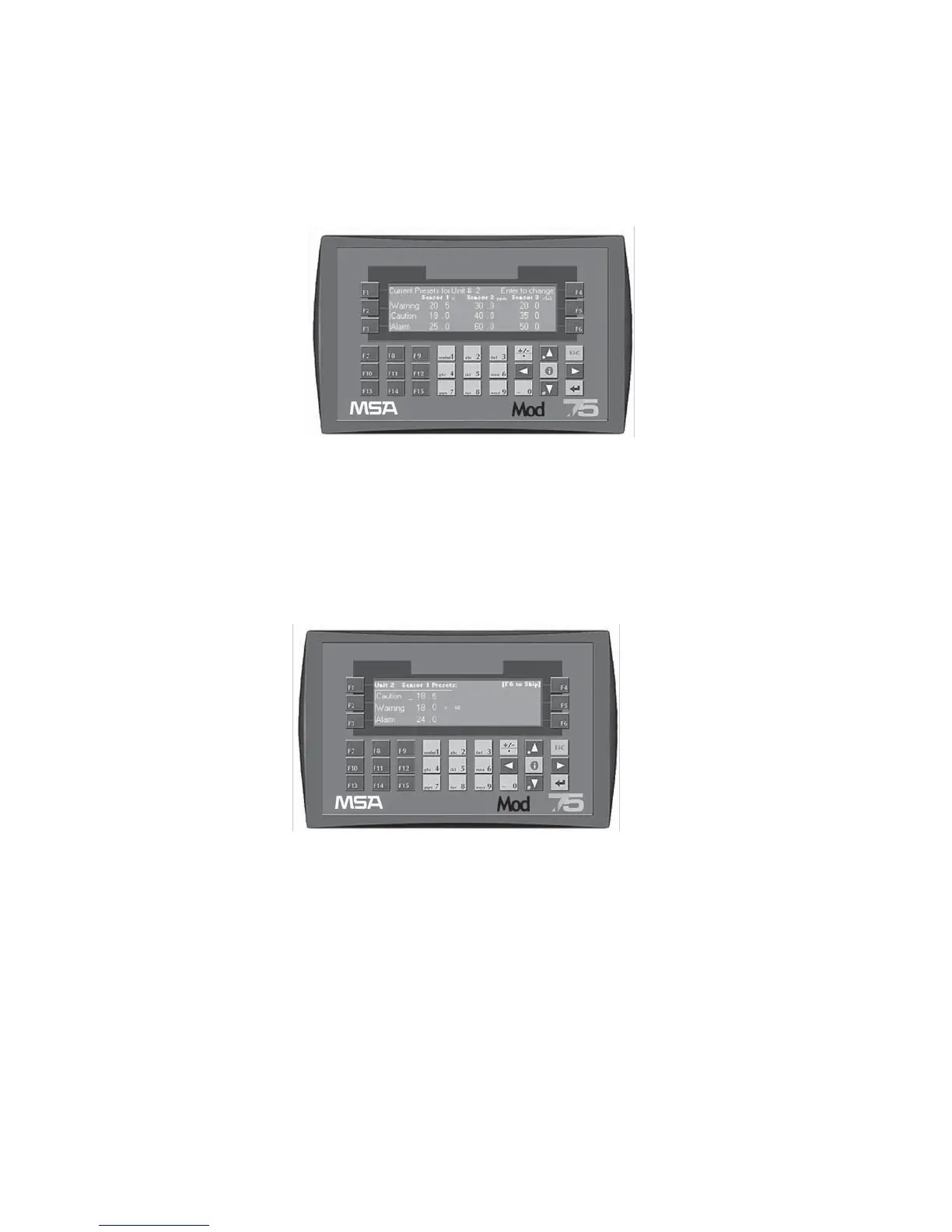

Figure 6-11. Sensor 1 Preset Screen
Figure 6-10. Current Set-point values
Read from the Selected Ultima X
3
Unit
6-9

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
